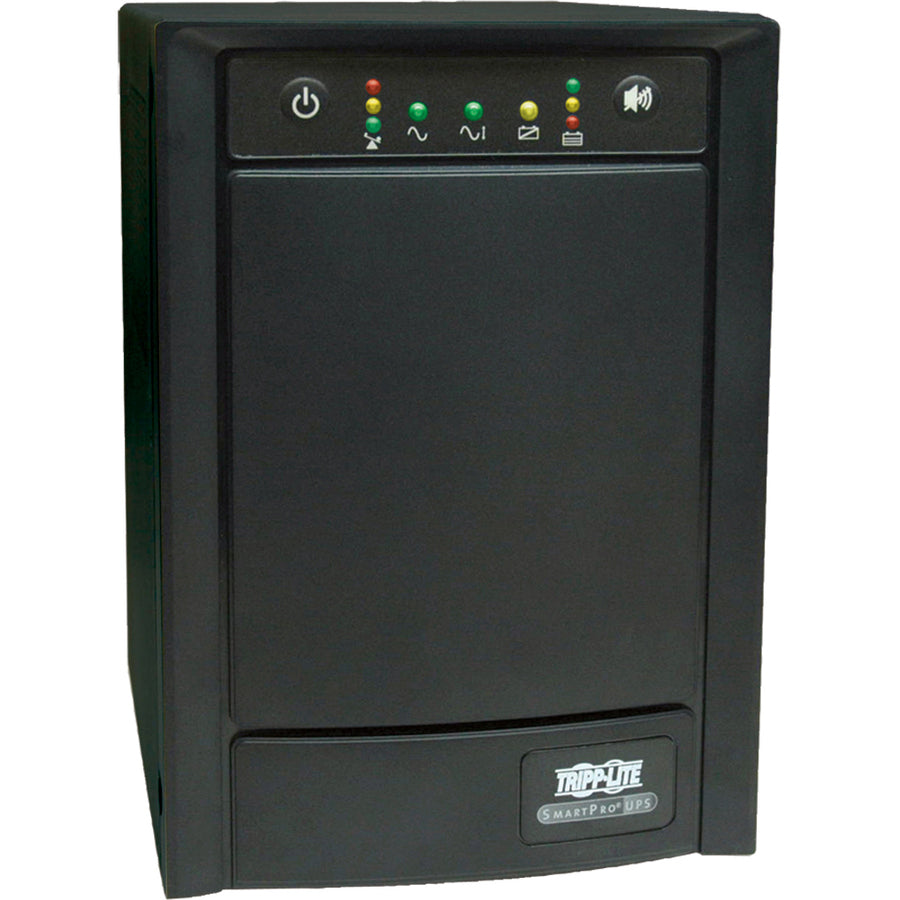

About this UPS
- Brand: Tripp Lite
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART750XLA
- Input Voltage: 120 V AC
- Form Factor: Tower
- Plug/Connector Type: NEMA 5-15P
- Backup/Run Time (Half Load): 27 Minute
- Backup/Run Time (Full Load): 10 Minute
- Load Capacity: 750 VA/500 W
Marketing Information:
750VA line-interactive tower UPS system for server, networking and telecommunications equipment. Supports extended runtime with optional BP24V28-2U and BP24V70-3U external battery packs. Compatible with 120V, 110V or 100V nominal voltage at 60Hz. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost during brownouts and voltage cut during overvoltages to maintain regulated output during brownouts and overvoltages. Includes NEMA 5-15P input plug and 8 NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Network management via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring softwa
-
Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 8 x NEMA 5-15RTransfer Time: 4 msLoad Capacity: 750 VA/500 WInput Voltage: 120 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 10 MinuteTypical Battery Recharge Time: 4.50 HourHeight: 10.10" (256.54 mm)Width: 6.70" (170.18 mm)Depth: 13.80" (350.52 mm)Form Factor: TowerWeight (Approximate): 15.38 kgPackage Contents:
- SMART750XLA 750VA Tower UPS
- SMART 750XLa UPS System
- PowerAlert Software CD-Rom
- USB and serial cabling
- User manual with warranty information
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
