About this UPS
- Brand: Tripp Lite
- Product Type: Dual Conversion Online UPS
- Manufacturer Part Number: SU16000RT4U
- Input Voltage: 110 V AC,220 V AC
- Form Factor: Rack/Tower
- Rack Height: 4U
- Plug/Connector Type: Hardwired
- Product Family: SmartOnline
- Backup/Run Time (Half Load): 12 Minute
- Backup/Run Time (Full Load): 5 Minute
- Load Capacity: 16 kVA
Marketing Information:
Tripp Lite 16kVA SmartOnline Hot-Swappable Modular Rack/Tower UPS offers 16,000 VA on-line, double-conversion UPS support for server, network and telecommunications equipment. Maintains full-time sine wave output within 3% of selectable 208/120 or 240/120V AC. Corrects brownouts and overvoltages from 65V to 140V (L-N). Network management interfaces include combination DB9 RS-232 enabled and dry contact serial port, enhanced USB port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Front panel LEDs and LCD readout with scroll controls support visual monitoring of all major UPS functions. Split phase 4 conductor hardwire input and output supported. UPS supported outlets include two L6-30R, six C19 and 5 low voltage 5-15/20R. Output connections are mounted on a detachable backplate with manual bypass switch.
-
Plug/Connector Type: HardwiredReceptacle Type:
- NEMA L6-30R
- IEC 320-C19
- NEMA 5-15/20R
- 2 x NEMA L6-30R
- 6 x IEC 320-C19
- 5 x NEMA 5-15/20R
- 110 V AC
- 220 V AC
- 120 V AC
- 208 V AC
- 240 V AC

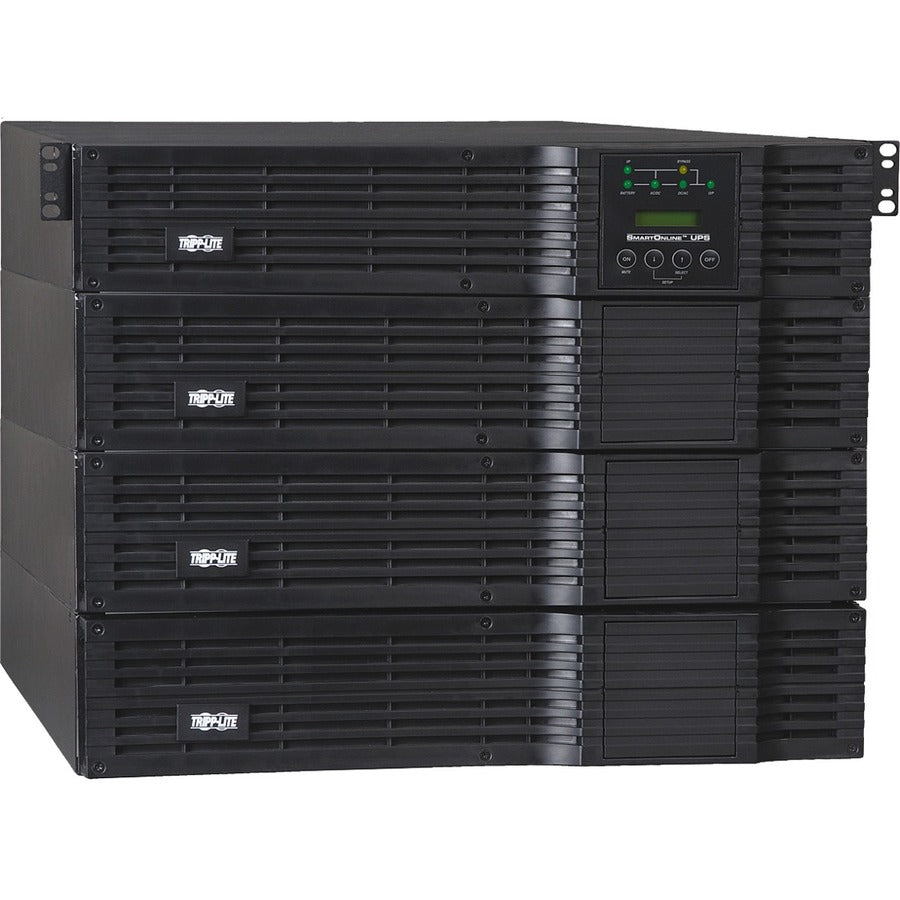

- SmartOnline SU16000RT4U 16kVA Tower/Rack-mountable UPS
- 16kVA/16,000 VA UPS power module in 4U rackmount housing
- Detachable hardwire input/output and output receptacle PDU
- External 4U battery pack
- 4 post rackmount installation brackets
Technical specifications
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
