About this UPS

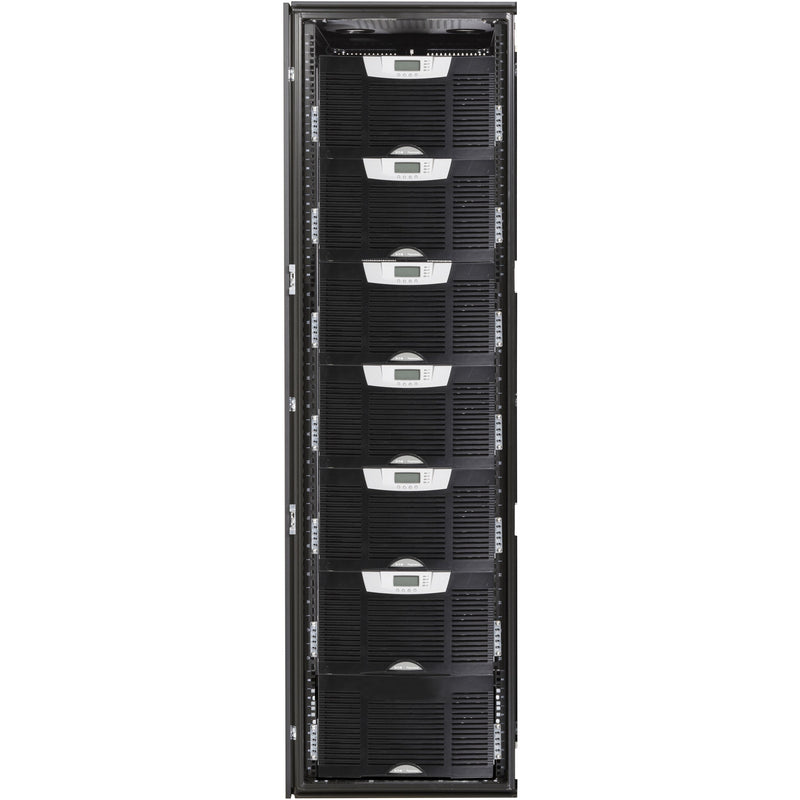

Eaton Preassembled BladeUPS - Top Entry 24 kW, 208V
| UPC | 743172080721 |
| Tower - 5 Minute Stand-by - 220 V AC Input - 208 V AC, 120 V AC, 228 V AC Output - Serial Port | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | ZP222100XXXX000 |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Line: | BladeUPS |
| Product Name: | Preassembled BladeUPS - Top Entry 24 kW, 208V |
| Marketing Information: | The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS expands power protection from 12 to 60 kW in a single 19-inch rack while reducing energy and cooling costs. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hard Wire 4-wire | Power Description |
| Input Voltage: | 220 V AC |
| Output Voltage: |
|
| Output Frequency: | 50 Hz | Management |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Modular Slots: |
|
Battery Information |
| Number of Batteries: | 80 |
| Battery Characteristics: | Maintenance-free/Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 13 Minute | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 81" (2057.40 mm) |
| Width: | 24" (609.60 mm) |
| Depth: | 42" (1066.80 mm) |
| Weight (Approximate): | 451 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | Eaton Intelligent Power Software |
| Country of Origin: | United States |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
