Assessing an Eaton 93PM battery bank before a maintenance outage
A composite three-phase case that separates observed condition, trend evidence and replacement scope
Publication note. This composite scenario describes a plausible technical situation from the cited sources. No customer, site, price, measured result or completed work is presented as real.
Decision in brief
Freeze the battery one-line and cabinet schedule, inspect the complete bank, collect comparable block and string data, review charger and environment, then classify the evidence as acceptable, monitor, investigate or replace. Do not convert one outlier into an unsupported whole-bank conclusion.
| Item | Record |
|---|---|
| Equipment | Eaton 93PM with external battery cabinets or strings |
| Status | Composite scenario with no field outcome claimed |

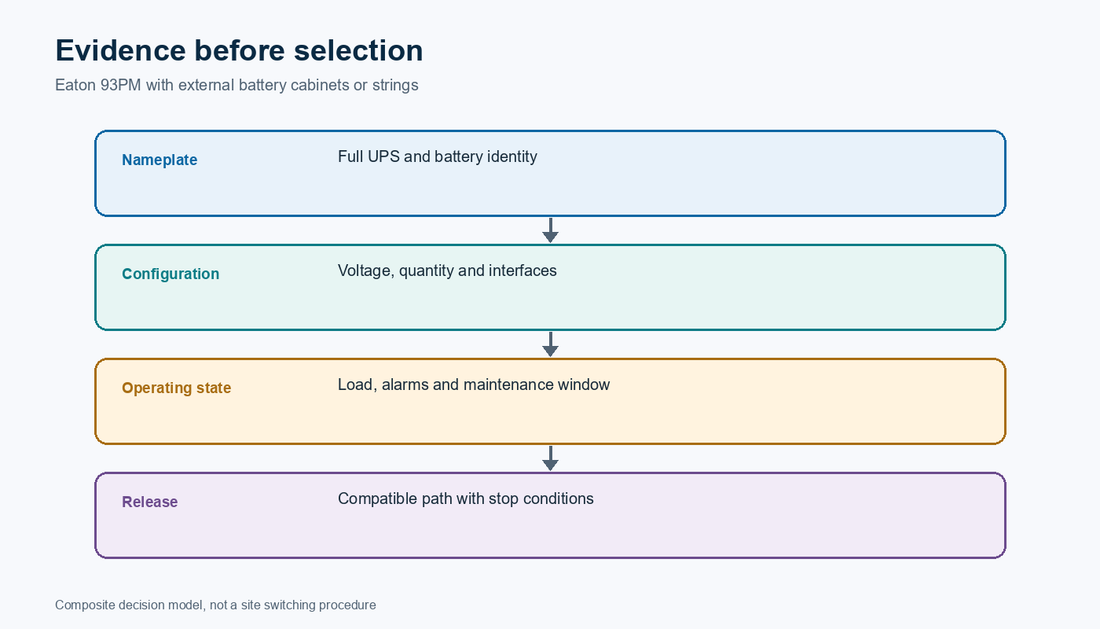

| Selection basis | Complete nameplate, manufacturer document and site data |
| Closeout | Recorded alarms, load, test and returned operating state |
Technical context
A facility wanted to use a planned maintenance outage to decide whether the 93PM battery bank could remain in service, needed targeted corrective work or required a complete replacement project. No recent baseline had been supplied with the request.
The assessment therefore separated configuration evidence from condition evidence. String quantity, block count, voltage and cabinet layout had to be confirmed before individual readings could be compared or acted upon.
The release decision follows verified evidence.
Boundaries established by the evidence
Eaton’s 93PM installation guidance documents battery-block quantities and warns against paralleling strings with different battery quantities and voltage. [1]
A single voltage or impedance reading does not establish remaining capacity or service life. [3]
Condition decisions improve when measurements are compared with a controlled baseline and consistent test method. [3]
Products and service in context
The Eaton industrial UPS collection places the 93PM in the correct three-phase equipment context.
Browse Eaton industrial UPS systems
Release conditions before ordering
Use the wider Eaton UPS collection when the condition findings trigger a system-level comparison.
Keep the order on hold while any of the following points remains open:
- Battery one-line or string count unavailable
- Mixed test instruments or methods
- Unsafe cabinet access
- No baseline or acceptance criteria
The release decision follows verified evidence.
Work control: Eaton 93PM with external battery cabinets or strings
Before testing, the service lead reconciles the 93PM battery one-line, string count, block quantity, cabinet labels and charger state. The same instrument and method are used across the bank, with safe access and the room condition recorded alongside each measurement set.
An outlier is rechecked before it changes the classification of a string or bank. The report separates measured voltage, temperature and impedance data from recommendations, and it does not translate a single reading into remaining capacity, service life or guaranteed runtime.
For a bank that requires controlled measurement, outage coordination or corrective work, Review three-phase UPS service for data centres describes the supporting data-centre service.
Handback evidence
- Configuration and labels reconciled
- Visual, voltage, temperature and impedance records complete
- Charger and room conditions recorded
- Outliers rechecked before classification
- Recommendations separated from measured facts
The release decision follows verified evidence.
Decision outcome
The composite output is a condition-assessment package with explicit limits, not a declaration of remaining years or guaranteed runtime. Replacement scope remains conditional on the actual readings and the site’s risk tolerance.
If the assessment supports replacement, the Eaton battery collection provides the catalogue route for the next qualified step.
Browse Eaton replacement batteries
References
- Eaton, Eaton 93PM User and Installation Guide
- Eaton, Eaton 93PM Integrated Battery Cabinet-Small Installation Manual
- GDF Technologies, internal UPS battery selection, sizing and condition-assessment references.
