| UPC | 0037332282071 |
| Desktop/Surface/Wall Mountable - 8 Hour Recharge - 1.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - 4 x NEMA 5-15R - 4 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | BC600R |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Model: | BC600R |

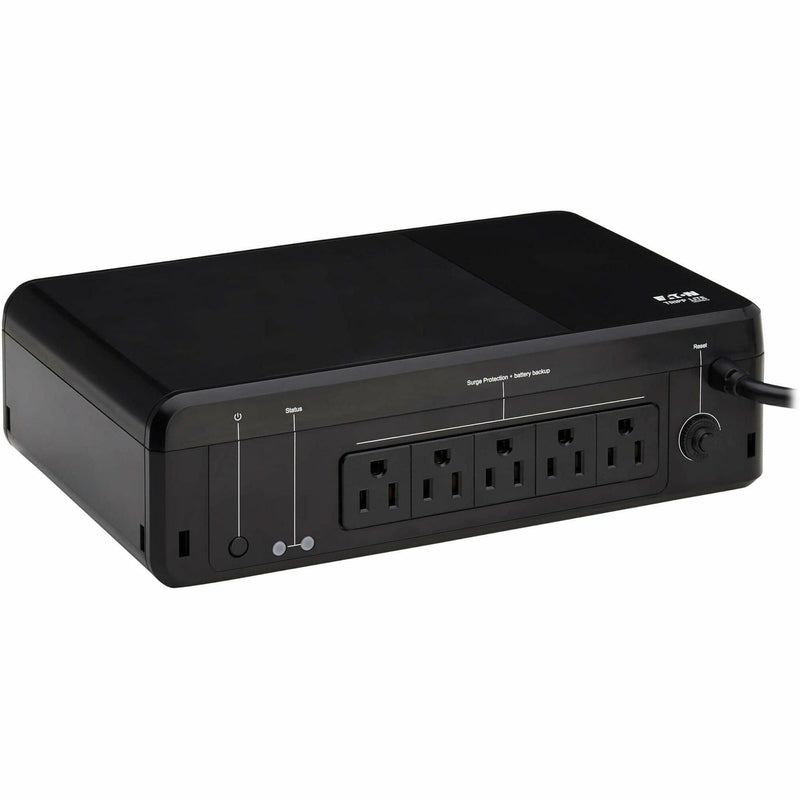

| Product Name: | BC600R 600VA Desktop/Surface/Wall Mountable UPS |
| Marketing Information: |
600VA/300W/120V Battery Backup for PCs and Retail Point-of-Sale Applications The BC600R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC600R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side. Allows Time to Back Up Critical Files During a Blackout Easy Preventative Maintenance and Initial Troubleshooting Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 4 |
| Cord Length: | 5 ft |
| Transfer Time: | 10 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Efficiency Detail: | 97% (AC Mode) |
| Application/Usage: |
|
| Features: |
|
Power Description |
| Load Capacity (VA): | 600 VA |
| Load Capacity (Watt): | 300 W |
| Input Voltage: | 120 V AC |
| Input Current: | 5 A |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 190 J |
| Circuit Breaker: | Yes |
| Output Power Factor: | 0.5 | Controls/Indicators |
| Status Indicators: |
LED Indicators:
|
Battery Information |
| DC System Voltage: | 12 V DC |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 1.50 Minute |
| Backup/Run Time (Half Load): | 5 Minute |
| Typical Battery Recharge Time: | 8 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Minimum Operating Temperature: | 32°F (0°C) |
| Maximum Operating Temperature: | 122°F (50°C) |
| Storage Temperature: | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation: | 6561.68 ft (2000000 mm) |
| Sound Emission: | 40 dB | Physical Characteristics |
| Height: | 2.28" (57.91 mm) |
| Width: | 10.04" (255.02 mm) |
| Depth: | 7.09" (180.09 mm) |
| Form Factor: | Desktop/Surface/Wall Mountable |
| Weight (Approximate): | 2 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Energy Star: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
