About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Standby UPS
- Manufacturer Part Number: INTERNET650U1
- Input Voltage: 120 V AC
- Form Factor: Desktop/Wall Mountable
- Waveform Type: Pulse-width Modulated Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Backup/Run Time (Half Load): 4.50 Minute
- Load Capacity: 650 VA/330 W
Marketing Information:
Compact Desktop 650VA/330W Battery Backup for PCs, Home Theater and Digital Signage
This 120V UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET650U1 should keep an energy-efficient desktop computer with small LCD monitor powered as long as 17 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
This port connects the INTERNET650U1 to a computer running Tripp Lite's free downloadable PowerAlert ® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included. The UPS works with Windows, Mac and Linux operating systems.

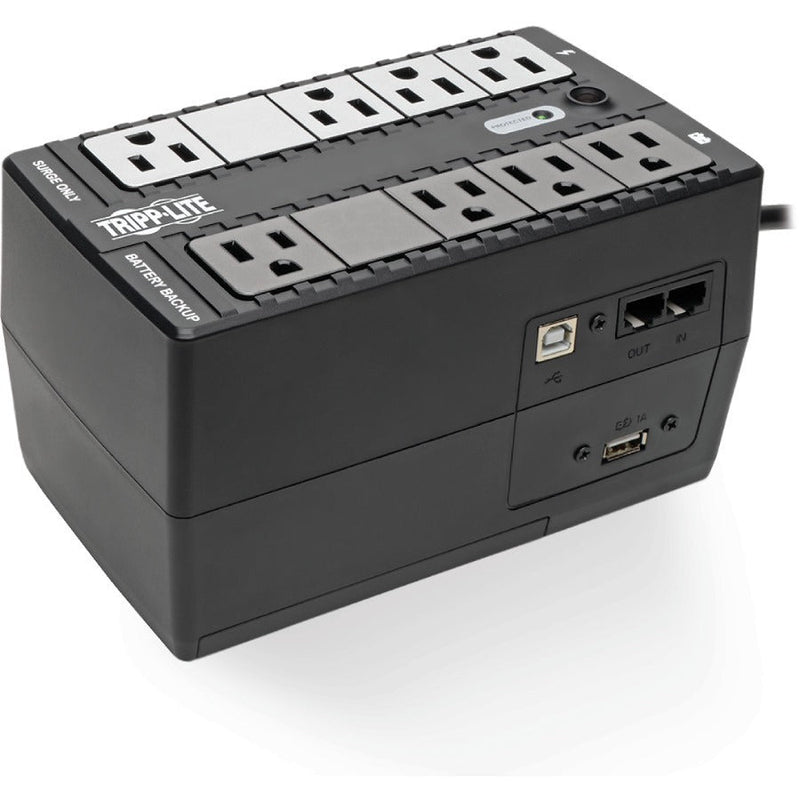

Connects Your Equipment to 8 Protected NEMA 5-15R Outlets
Four 5-15R outlets provide both battery backup and surge protection to your computer, monitor and other crucial components. The other four are surge-protected only for printers, scanners and other non-essential equipment. A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Two outlets are spaced apart from the others to accommodate bulky transformers. RJ45 jacks protect a standard dial-up/DSL phone connection or 10Base-T Ethernet line connection from data line surges.
Charges Mobile Devices, Including Smartphones and Tablets
A USB charging port delivers up to 5V 1A maximum charge current for keeping your phone, MP3 player and other USB-compatible device at 100% capacity.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The INTERNET650U1 incorporates technology that filters out disruptive line noise so that it won't affect your equipment.
Diagnostic LED and Audible Alarm Keep You Informed
Front-panel green LED indicates line/battery mode status, overloads and low/replace battery alert. A home-friendly alarm stays silent in AC and battery modes, except to warn you of a low battery or fault condition.
High Line-Mode Efficiency Saves Energy and Cuts Costs
A high >98% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Dataline Protection | RJ-45 |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Application/Usage |
|
| Load Capacity (VA) | 650 VA |
| Load Capacity (Watt) | 330 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Alarm |
|
| Status Indicators |
LED Indicators:
|
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Half Load) | 4.50 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Relative Humidity | 90% |
| Thermal Dissipation | 13.07 BTU/h |
| Height | 4.13" (105 mm) |
| Width | 4.33" (110 mm) |
| Depth | 7.28" (185 mm) |
| Form Factor | Desktop/Wall Mountable |
| Weight (Approximate) | 3.97 lb (1800 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate - based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
