About this UPS

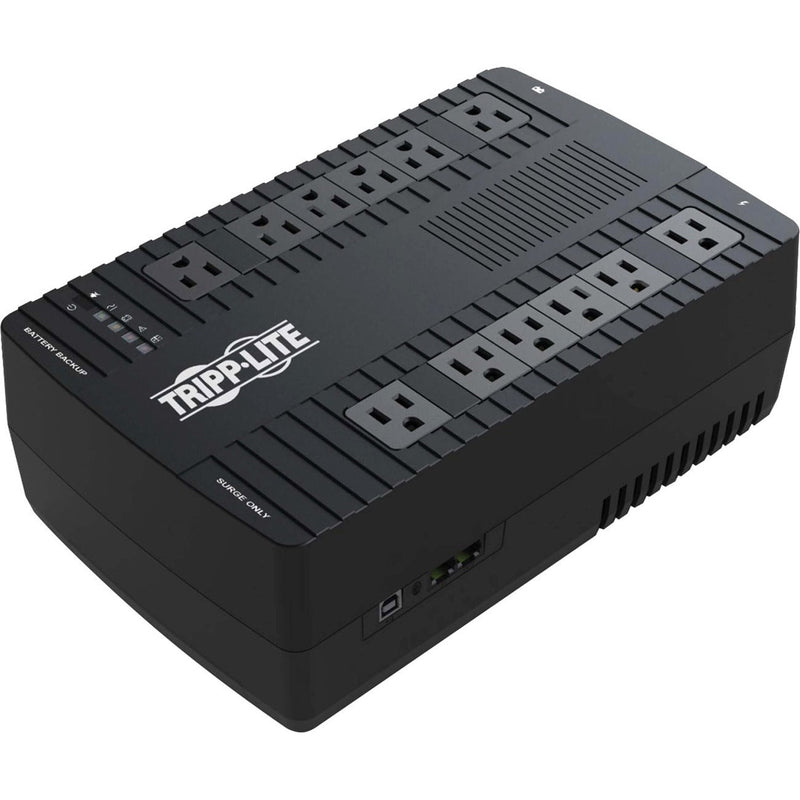

Tripp Lite by Eaton OmniSmart OMNISMART750MX 750VA Ultra-compact Desktop/Tower/Wall Mount UPS
| UPC | 0037332258175 |
| Ultra-compact Desktop/Tower/Wall Mount - AVR - 5 Hour Recharge - 3.60 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - 12 x NEMA 5-15R - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | OMNISMART750MX |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | OmniSmart |
| Product Model: | OMNISMART750MX |
| Product Name: | OmniSmart OMNISMART750MX 750VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Marketing Information: |
750VA/460W/120V Battery Backup for PCs, Home Theaters or Digital Signage Allows Time to Back Up Critical Files During a Blackout 12 NEMA 5-15R Outlets Protect Your Connected Components Double-Boost AVR Corrects Low/High-Voltage Conditions for Enhanced Performance 600 Joules Fight Back Against Unexpected Power Surges Designed for High Efficiency to Help You Save Money and Protect the Environment |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Number of Surge-only Outlets: | 6 |
| Dataline Protection: | RS-232 |
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Energy Saving: | Greater than 95% efficiency - GREEN UPS |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 750 VA |
| Load Capacity (Watt): | 460 W |
| Input Voltage: | 120 V AC |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 600 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
LED Indicators:
|
Interfaces/Ports |
| Network (RJ-45): | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 12 V DC |
| Backup/Run Time (Full Load): | 3.60 Minute |
| Backup/Run Time (Half Load): | 11 Minute |
| Typical Battery Recharge Time: | 5 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) |
| Thermal Dissipation: | 23.21 BTU/h | Physical Characteristics |
| Height: | 4.13" (105 mm) |
| Width: | 7.48" (190 mm) |
| Depth: | 12.01" (305 mm) |
| Form Factor: | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate): | 6.10 kg | Miscellaneous |
| Package Contents: |
|
| Energy Star: | Yes |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
