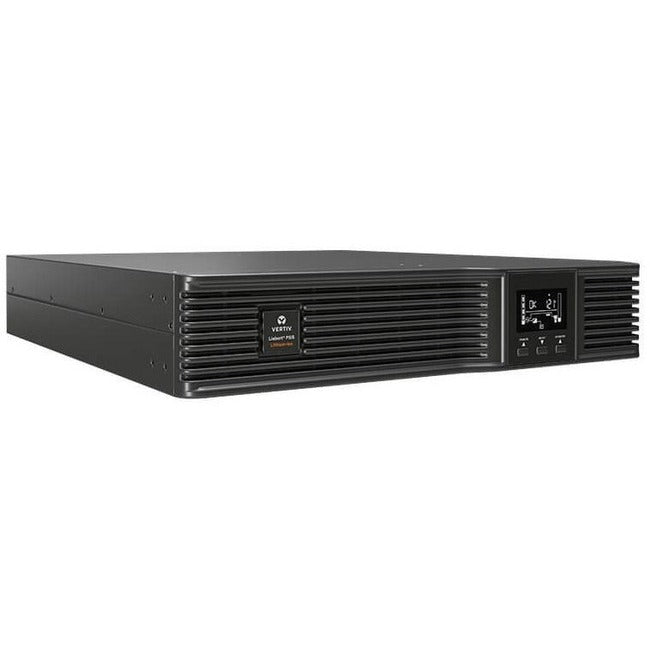

Vertiv Liebert PSI5 UPS - 5000VA Line Interactive, Rackmount
UPC | 0812105028748 |
2U Rack/Tower - AVR - 4 Hour Recharge - 3 Minute Stand-by - 208 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Pure Sine Wave - 4 x NEMA L6-30R - 6 x Battery/Surge Outlet |
General Information | |
---|---|
Manufacturer: | Vertiv |
Manufacturer Part Number: | PSI5-5000RT208 |
Manufacturer Website Address: | http://www.vertiv.com/ |
Brand Name: | Liebert |
Product Series: | PSI5 |
Product Name: | PSI5 5000VA/4500W, 208VAC, Rack-tower |
Marketing Information: |
Liebert PSI5 is a compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers.
Reliable UPS Protection To Keep Your Network Up And Running The flexible design of the Liebert® PSI™5 allows the UPS to be configured as a self-standing tower or to be rack-mounted within a 2U space. It is available in six capacities with both 120V or 208V models. |
Product Type: | Line-interactive UPS | Technical Information |
AVR: | Yes |
Plug/Connector Type: | NEMA L6-30R |
Receptacle Type: | NEMA L6-30R |
Receptacle Detail: | 4 x NEMA L6-30R |
Number of Battery & Surge Outlets: | 6 |
Transfer Time: | 6 ms |
Phase: | Single Phase |
Application/Usage: |
|
Power Description |
Load Capacity (VA): | 4.25 kVA |
Load Capacity (Watt): | 3.83 kW |
Input Voltage: | 208 V AC |
Input Voltage Range: | 150 V AC - 281 V AC |
Output Voltage: |
|
Waveform Type: | Pure Sine Wave | Controls/Indicators |
Status Indicators: | LCD Display | Interfaces/Ports |
Network (RJ-45): | Yes | Battery Information |
Backup/Run Time (Full Load): | 3 Minute |
Backup/Run Time (Half Load): | 10 Minute |
Typical Battery Recharge Time: | 4 Hour |
Hot Swappable: | Yes | Physical Characteristics |
Height: | 3.50" (88.90 mm) |
Width: | 17.20" (436.88 mm) |
Depth: | 24.80" (629.92 mm) |
Rack Height: | 2U |
Form Factor: | Rack/Tower | Miscellaneous |
Package Contents: |
|
Energy Star: | Yes |
Country of Origin: | China |
TAA Compliant: | No |
Environmentally Friendly: | Yes |
Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
Limited Warranty: | 2 Year |
