| UPC | 0812105028694 |
| 0.9 Power Factor| Rotatable LCD Monitor | Pure Sine Wave Output on Battery | 1 Group of Programmable Outlet | 4 Hour Recharge - 2 Minute Stand-by | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | PSI5-800RT120 |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | PSI5 |

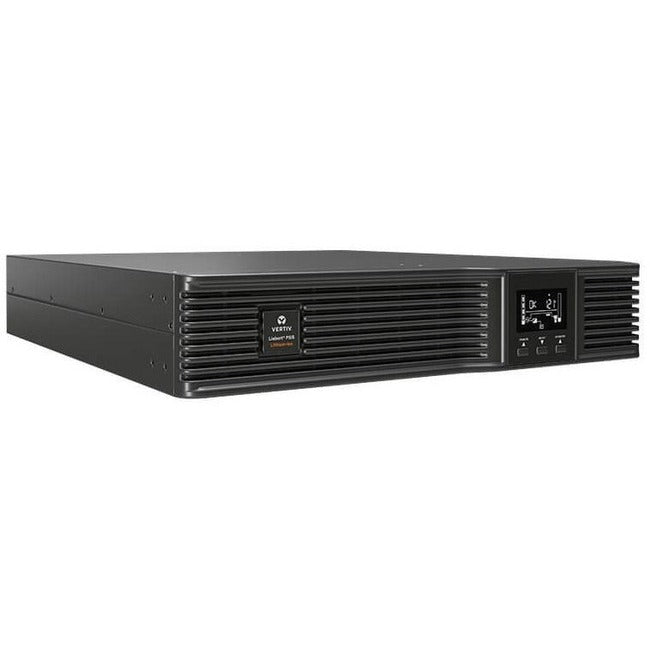

| Product Name: | PSI5 800VA/720W, 120VAC, Rack-tower |
| Marketing Information: |
The Vertiv Liebert PSI5 uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 800VA UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life. Voltage regulation is from 75 to 146 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems with free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15 |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Transfer Time: | 6 ms |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 800 VA |
| Load Capacity (Watt): | 720 W |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 75 V AC - 146 V AC |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 1372 J | Controls/Indicators |
| Status Indicators: | LCD Display | Interfaces/Ports |
| Network (RJ-45): | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3 Minute |
| Backup/Run Time (Half Load): | 11 Minute |
| Number of External Battery Cabinets: | 6 |
| Backup/Run Time With External Battery Cabinet (Full Load): | 2.57 Hour |
| Backup/Run Time With External Battery Cabinet (Half Load): | 5.83 Hour |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 122°F (50°C) | Physical Characteristics |
| Height: | 3.50" (88.90 mm) |
| Width: | 17.20" (436.88 mm) |
| Depth: | 16.10" (408.94 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 12.88 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
