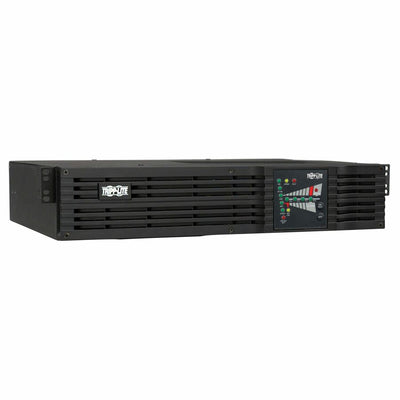

About this UPS
- Brand: Tripp Lite
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU750RTXL2U
- Input Voltage: 110 V AC
- Form Factor: Rack/Tower
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartOnline
- Backup/Run Time (Half Load): 11 Minute
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 750 VA/600 W
Marketing Information:
750VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. Dataline surge suppression for dialup, DSL or network Ethernet connection.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Transfer Time | 0 ns |
| Load Capacity | 750 VA/600 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.50" (342.90 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 13.15 kg |
| Package Contents |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
