About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART2200VS
- Input Voltage: 120 V AC
- Form Factor: Tower
- Plug/Connector Type: NEMA 5-20P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 19 Minute
- Backup/Run Time (Full Load): 7 Minute
- Load Capacity: 2.20 kVA/1.60 kW
Marketing Information:

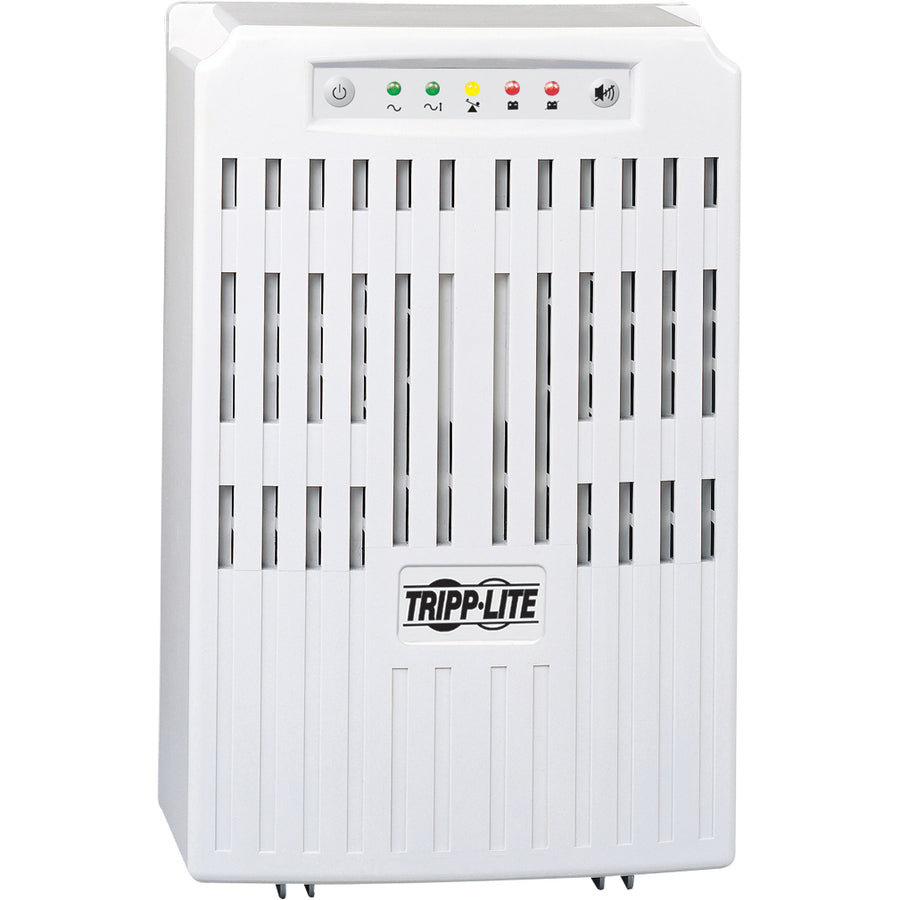

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.60 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Alarm |
|
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Height | 14.25" (361.95 mm) |
| Width | 9.25" (234.95 mm) |
| Depth | 12" (304.80 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 52.40 lb (23768.24 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

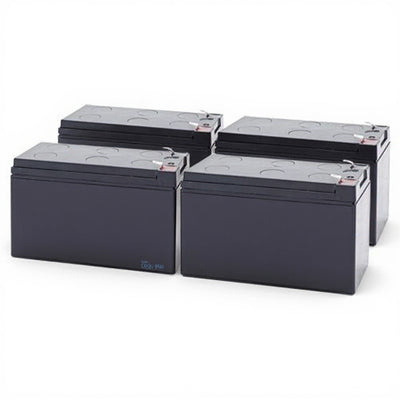

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
