About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART750RMXL2UN
- Input Voltage: 120 V AC
- Form Factor: Rack/Tower
- Waveform Type: Pure Sine Wave
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 20.70 Minute
- Backup/Run Time (Full Load): 8.50 Minute
- Load Capacity: 750 VA/600 W
Marketing Information:
750VA/600W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

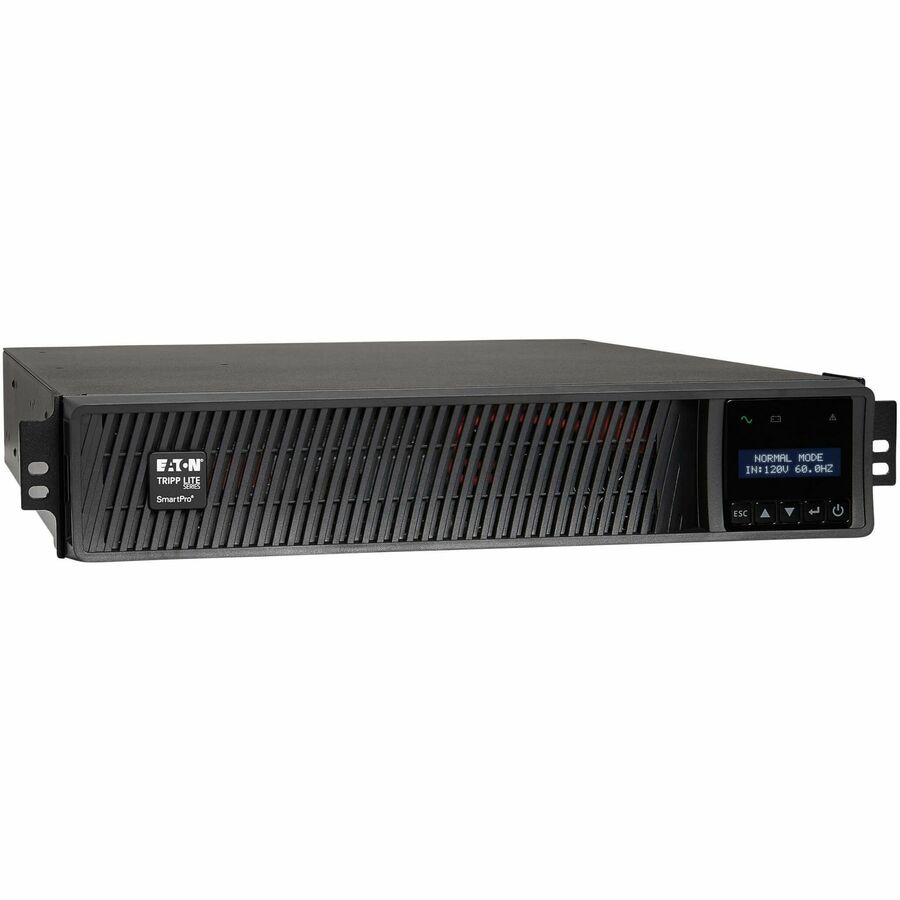

The SmartPro ® line-interactive SMART750RMXL2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The user-replaceable, hot-swappable internal battery provides 20.7 minutes of support at half load (300W) and 8.5 minutes at full load (600W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP24V36-2US (sold separately). The intelligent battery management system extends battery life.
WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.
6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART750RMXL2UN can correct brownouts as low as 83V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock
The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Network Management | SNMP/Telnet/SSH |
| Alarm |
|
| Status Indicators |
Front Panel LCD Information And Configuration Screen:
|
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 24 V DC |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 20.70 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 122 °F (50 °C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 109 BTU/h |
| Height | 3.46" (88 mm) |
| Width | 17.36" (441 mm) |
| Depth | 13.15" (334 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb (16057.17 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

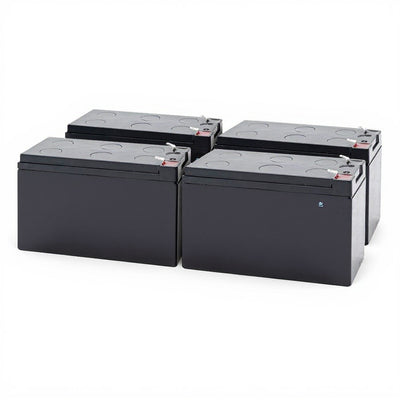

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
