| UPC | N/A |
| Includes VR3100, VP8932, PSI5-3000RT120N, VRA1014, VRA1005, GTHD, Power Assist/Insight and 3 year warranty. | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | VSC42NX30PLASV |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | VERTIV |
| Product Line: | SmartCloset |

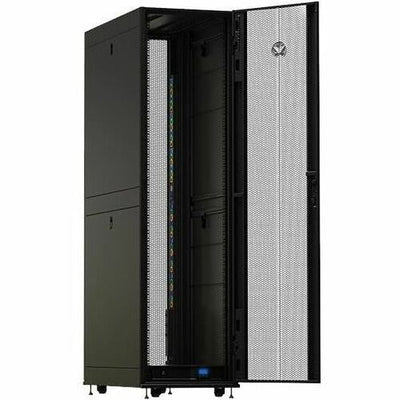

| Product Name: | SmartCloset 3000VA UPS |
| Marketing Information: | Vertiv™ SmartCloset™ is a complete solution curated by Vertiv experts to enable rapid and risk-free IT deployments at the Edge. The SmartCloset™ brings together Vertiv™ VR Rack, Vertiv™ Liebert® UPS, and Vertiv™ Geist™ rPDU in one easy-to-order product providing the infrastructure required to support mission critical business operations. Choose between our Vertiv TM single phase UPS and Vertiv™ Liebert® GXT5 UPS's in either VLRA and Lithium-ion based on system requirements. All SmartCloset models include networking cards to integrate the UPS into monitoring systems, allowing users to manage system status and alarms 24/7 anywhere in the world. Optional Geist™ rPDUs provide reliability and versatility to the power chain, enabling IT managers to monitor and control power distribution from a system or outlet level. Cable management accessories are standard features to enhance deployment organization and extend the lifetime of critical cables. All of this is protected by one system-level warranty to provide peace of mind for years to come. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Receptacle Type: | NEMA 5-20R |
| Receptacle Detail: | 6 x NEMA 5-20R |
| Transfer Time: | 6 ms | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.70 kW | Management |
| Network Management: | IS-UNITY-SNMP | Battery Information |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid | Environmental Conditions |
| Environmental Sensors: |
|
Physical Characteristics |
| Height: | 78.74" (2000 mm) |
| Width: | 23.62" (600 mm) |
| Depth: | 43.31" (1100 mm) |
| Rack Height: | 40U |
| Weight (Approximate): | 168 kg | Miscellaneous |
| Package Contents: |
|
Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | System Level |
