About this UPS

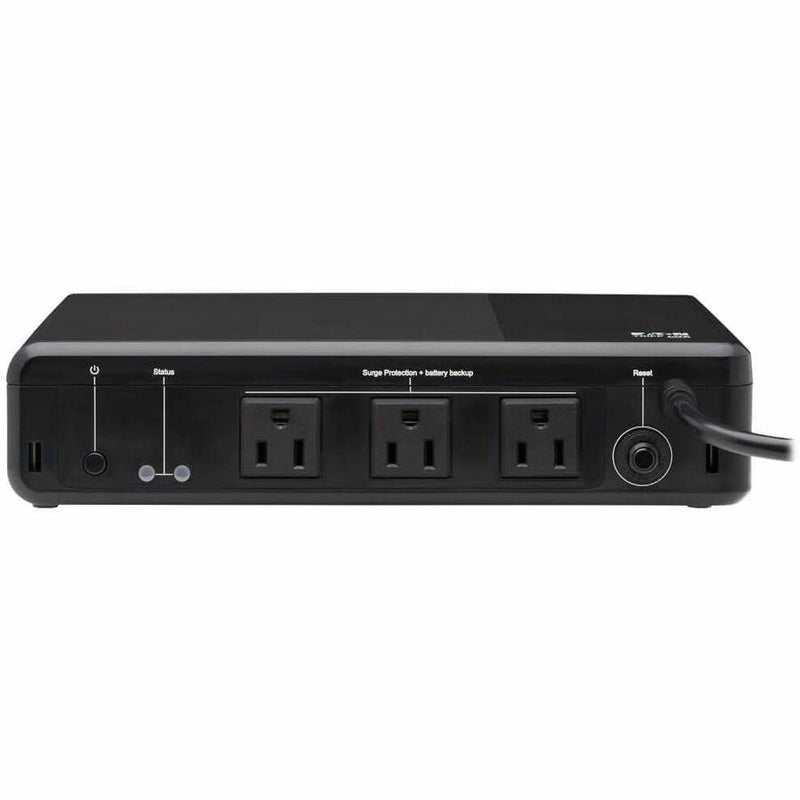

Tripp Lite by Eaton BC350R 350VA Desktop/Surface/Wall mountable UPS
| UPC | 0037332279552 |
| Desktop/Surface/Wall Mountable - 8 Hour Recharge - 2.20 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - 3 x NEMA 5-15R - 3 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | BC350R |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Model: | BC350R |
| Product Name: | BC350R 350VA Desktop/Surface/Wall mountable UPS |
| Marketing Information: |
350VA/210W/120V Battery Backup for PCs and Retail Point-of-Sale Applications The BC350R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC350R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side. Allows Time to Back Up Critical Files During a Blackout During short blackouts and brownouts, the BC350R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC350R restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit. Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better Rated for 190 joules of surge suppression, the BC350R and its three NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC350R also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime. Easy Preventative Maintenance and Initial Troubleshooting The BC350R's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads. Audible Alarm and Diagnostic LEDs Keep You Informed 24/7 An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status. Hardened Housing Compatible with Versatile Deployment Options The rugged compact housing allows use in locations with uncontrolled temperature or humidity (operating temperature range: 32 ° to 122 ° F / 0 ° to 50 ° C). The BC350R's small size is suitable for desktop or floor placement. Keyhole mounting slots on the bottom enable wall mounting and are spaced in a 100 x 100 mm VESA pattern for mounting to the back of a monitor with the included hardware. Attachment points allow installation on a shelf or beam with user-supplied cable ties. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet. |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 3 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 3 |
| Cord Length: | 5 ft |
| Transfer Time: | 10 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Efficiency Detail: | 97% (AC Mode) |
| Application/Usage: |
|
| Features: |
|
Power Description |
| Load Capacity (VA): | 350 VA |
| Load Capacity (Watt): | 210 W |
| Input Voltage: | 120 V AC |
| Input Current: | 3 A |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 190 J |
| Circuit Breaker: | Yes |
| Output Power Factor: | 0.6 | Controls/Indicators |
| Status Indicators: |
LED Indicators:
|
Battery Information |
| DC System Voltage: | 12 V DC |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 2.20 Minute |
| Backup/Run Time (Half Load): | 7 Minute |
| Typical Battery Recharge Time: | 8 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Minimum Operating Temperature: | 32 °F (0 °C) |
| Maximum Operating Temperature: | 122 °F (50 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 122 °F (50 °C) |
| Maximum Operating Elevation: | 6561.68 ft (2000000 mm) |
| Sound Emission (A-Weighted): | 40 dB(A) | Physical Characteristics |
| Height: | 2.28" (57.91 mm) |
| Width: | 10.04" (255.02 mm) |
| Depth: | 7.09" (180.09 mm) |
| Form Factor: | Desktop/Surface/Wall Mountable |
| Weight (Approximate): | 1.90 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Energy Star: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
