| UPC | 0037332205162 |
| Tower - AVR - 7 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - 10 x NEMA 5-15R - 5 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | ECO1500LCD |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Series: | ECO |
| Product Model: | ECO1500LCD |

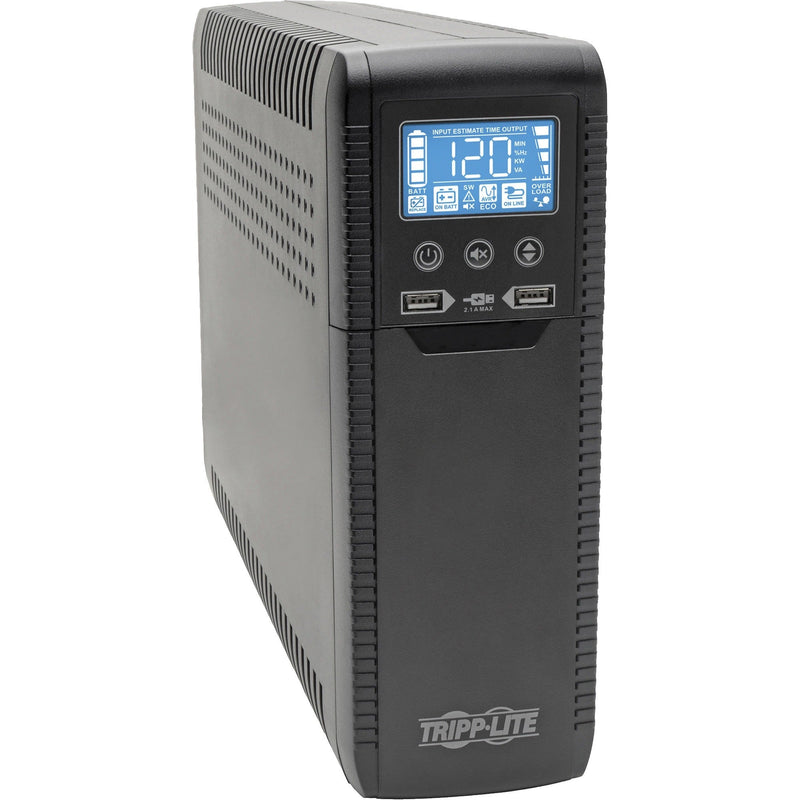

| Product Name: | ECO1500LCD 1440VA Tower UPS |
| Marketing Information: |
Line-interactive UPS provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. ECO power-saving option turns off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. Automatic voltage regulation (AVR) corrects low-voltage conditions to protect your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. Built-in audible alarm sounds to warn you of a low battery or overload conditions. |
| Packaged Quantity: | 1 Each |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 5 |
| Number of Surge-only Outlets: | 5 |
| Dataline Protection: |
|
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.44 kVA |
| Load Capacity (Watt): | 900 W |
| Input Voltage: | 120 V AC |
| Output Voltage: |
|
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave | Management |
| Alarm: |
|
Battery Information |
| DC System Voltage: | 24 V DC |
| Backup/Run Time (Full Load): | 3 Minute |
| Backup/Run Time (Half Load): | 12 Minute |
| Typical Battery Recharge Time: | 7 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 11" (279.40 mm) |
| Width: | 3.90" (99.06 mm) |
| Depth: | 16.14" (409.96 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 11.99 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Assembly Required: | No |
| Energy Star: | Yes |
| Country of Origin: | Vietnam |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 year limited warranty |
