| UPC | 0037332211026 |
| Ultra-compact Desktop/Tower/Wall Mount - 6.50 Hour Recharge - 1.20 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - 10 x NEMA 5-15R - 5 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | INTERNET550U |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | Internet Office |
| Product Model: | INTERNET550U |

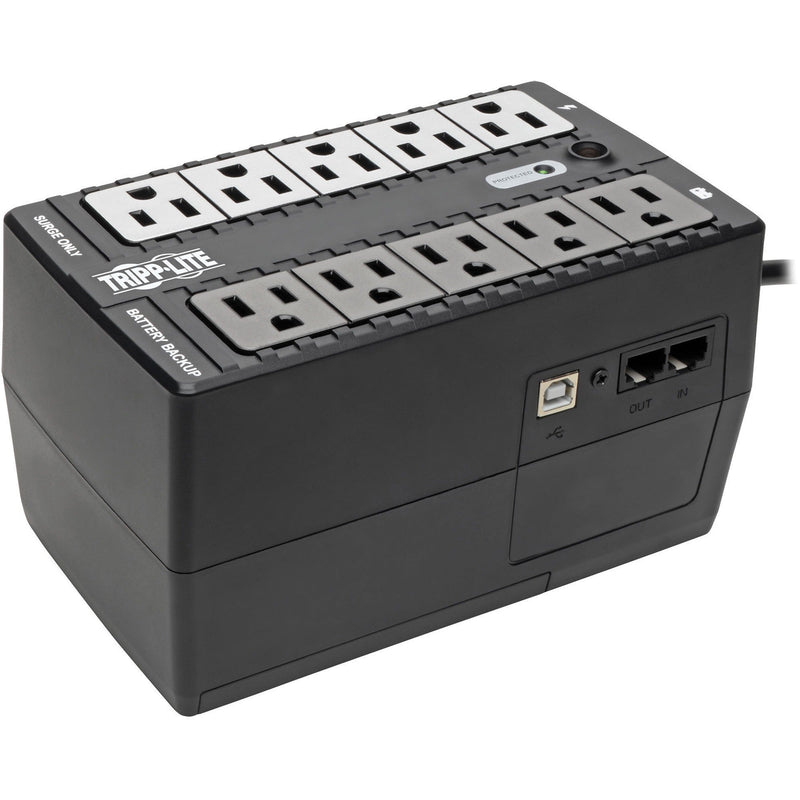

| Product Name: | Internet Office INTERNET550U 550VA UPS |
| Marketing Information: | UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Two of the 8 output receptacles are widely spaced to accommodate large transformer plugs. Four outlets with full battery support and surge suppression protect computers, monitors and other vital system components from loss of power. Four additional outlets with surge suppression-only are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 550VA/300 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures. |
| Packaged Quantity: | 1 Each |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 5 |
| Number of Surge-only Outlets: | 5 |
| Dataline Protection: |
|
| Protection Type: |
|
| Cord Length: | 5 ft |
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Energy Saving: | Greater than 95% efficiency - GREEN UPS |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 550 VA |
| Load Capacity (Watt): | 300 W |
| Input Voltage: | 120 V AC |
| Input Current: | 12 A |
| Output Voltage: |
|
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 316 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | 1 x Status LED reports operating mode and fault status |
Interfaces/Ports |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 12 V DC |
| Backup/Run Time (Full Load): | 1.20 Minute |
| Backup/Run Time (Half Load): | 5 Minute |
| Typical Battery Recharge Time: | 6.50 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Storage Temperature: | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) | Physical Characteristics |
| Height: | 4.13" (105 mm) |
| Width: | 4.33" (110 mm) |
| Depth: | 7.28" (185 mm) |
| Form Factor: | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate): | 1.80 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | Energy Star |
| Software Included: | PowerAlert Software |
| Recycled: | No |
| Assembly Required: | No |
| Country of Origin: | Vietnam |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: |
|
