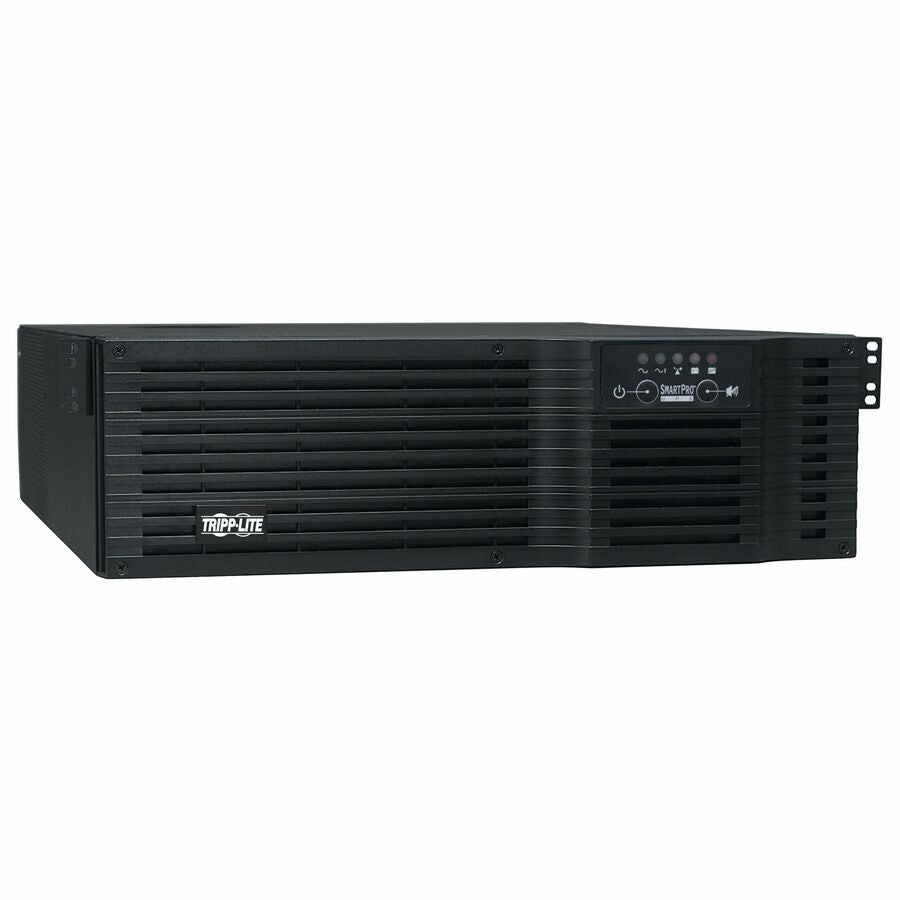

Tripp Lite by Eaton SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS - SM2200RMDVTAA - Line-interactive UPS, 110 V AC,220 V AC, Rack/Tower, 3U, 120 V AC, SmartPro, 30 Minute, 12 Minute, 2.20 kVA/1.92 kW
Tripp Lite by Eaton SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS - SM2200RMDVTAA - Line-interactive UPS, 110 V AC,220 V AC, Rack/Tower, 3U, 120 V AC, SmartPro, 30 Minute, 12 Minute, 2.20 kVA/1.92 kW
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SM2200RMDVTAA
- Input Voltage: 110 V AC,220 V AC
- Form Factor: Rack/Tower
- Rack Height: 3U
- Product Family: SmartPro
- Backup/Run Time (Half Load): 30 Minute
- Backup/Run Time (Full Load): 12 Minute
- Load Capacity: 2.20 kVA/1.92 kW
Marketing Information:
Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage |
|
| Input Current | 16 A |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 30 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25.25" (641.35 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 104.25 lb (47287 g) |
| Package Contents |
|
| Additional Information | Input Receptacle: C20 |
| Certifications & Standards |
|
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
