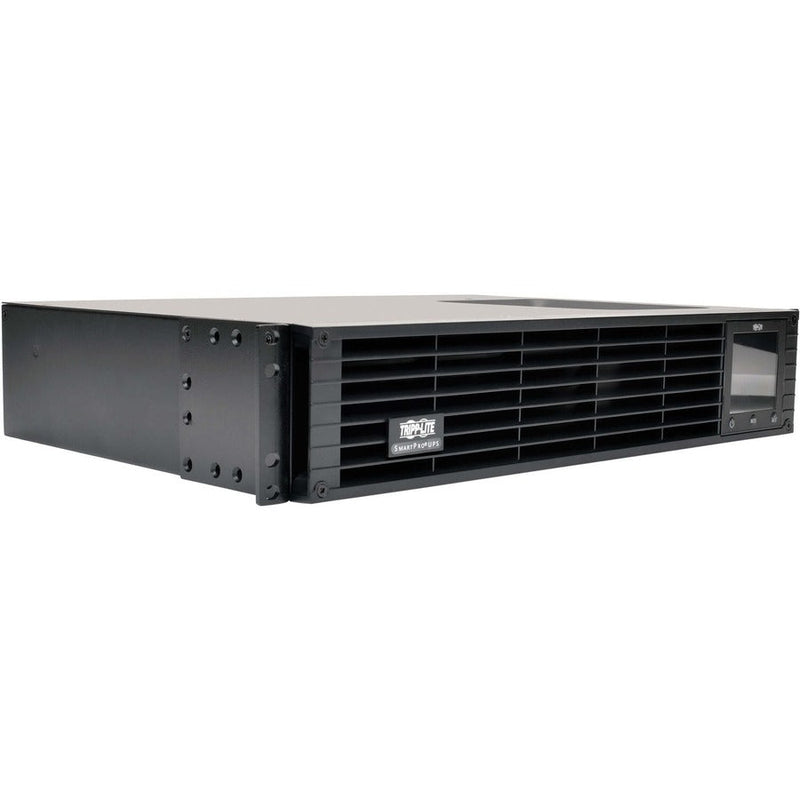

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMC15002URM
- Input Voltage: 120 V AC
- Form Factor: Rack/Tower
- Waveform Type: Sine Wave,Pure Sine Wave
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 17.70 Minute
- Backup/Run Time (Full Load): 6.50 Minute
- Load Capacity: 1.50 kVA/1 kW
Marketing Information:
Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Protection Type |
|
| Emergency Power OFF | Yes |
| Cord Length | 9.8 ft (3 m) |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Waveform Type |
|
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
| Alarm |
|
| Battery Management | user-replaceable |
| Status Indicators | LEDs |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 17.70 Minute |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 223 BTU/h |
| Height | 3.45" (87.63 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 13.45" (341.63 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 46.50 lb (21092.05 g) |
| Package Contents |
|
| Certifications & Standards | UL Listed Certification |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
| Additional Warranty Information |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
