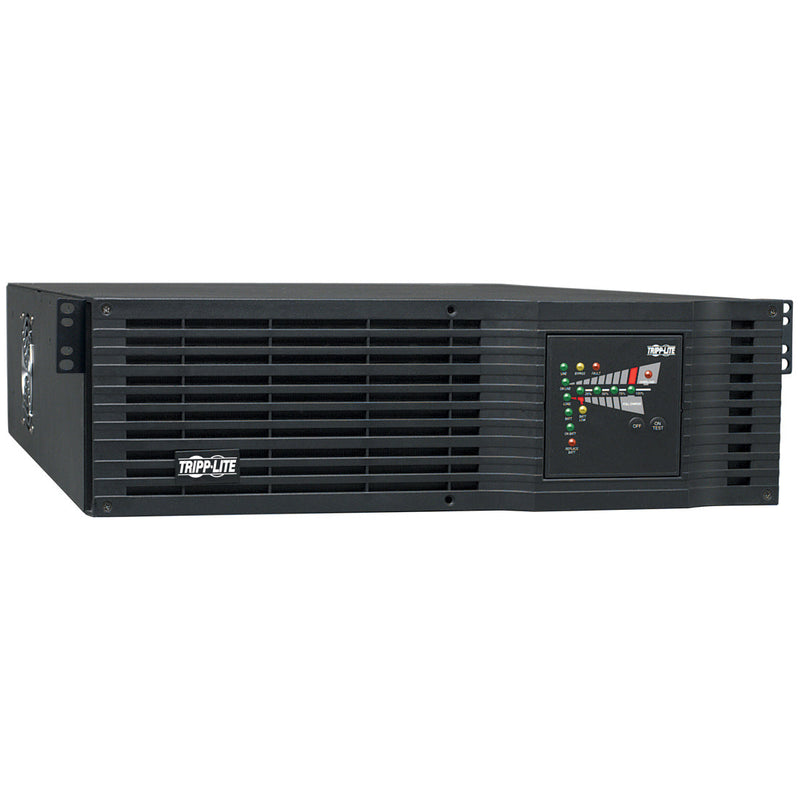

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU3000RTXR3U
- Input Voltage: 110 V AC
- Form Factor: Rack/Tower
- Waveform Type: Sine Wave
- Rack Height: 3U
- Plug/Connector Type: NEMA L5-30P
- Product Family: SmartOnline
- Backup/Run Time (Half Load): 33 Minute
- Backup/Run Time (Full Load): 14 Minute
- Load Capacity: 3 kVA/2.40 kW
Marketing Information:
3000VA / 3kVA online, double-conversion UPS system for critical server, network and telecommunications equipment. "XR" configuration offers twice the battery capacity as comparable "XL" version. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. NEMA L5-30P input plug. NEMA 5-15R, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Dataline Protection |
|
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Cord Length | 10 ft |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
| Input Voltage | 110 V AC |
| Input Current | 24 A |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Circuit Breaker | Yes |
| Network Management | SNMP Manageable |
| Alarm |
|
| Status Indicators |
LED Status Display:
|
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 14 Minute |
| Backup/Run Time (Half Load) | 33 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Color Family | Black |
| Product Color | Black |
| Height | 5.25" (133.35 mm) |
| Width | 17.75" (450.85 mm) |
| Depth | 26" (660.40 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 50.50 kg |
| Package Contents |
|
| Additional Information |
Switches:
|
| Certifications & Standards |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
