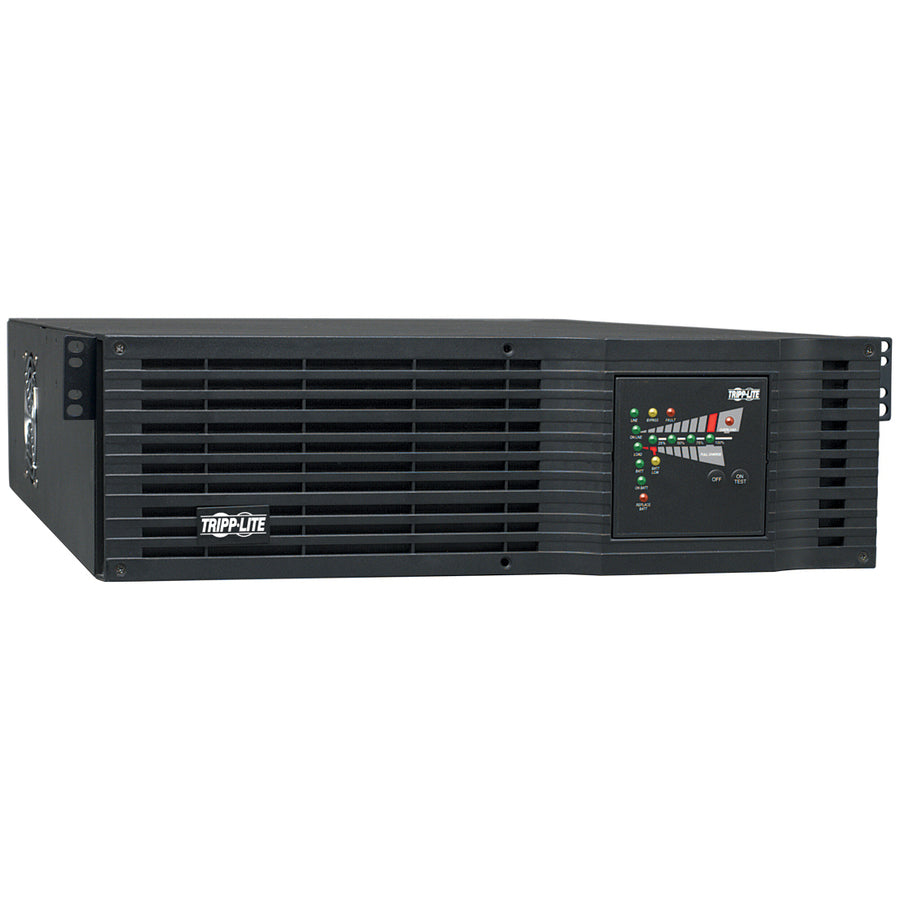

Tripp Lite SmartOnline SU3000RTXR3U 3000VA Tower/Rack Mounting UPS - SU3000RTXR3U - Double Conversion Online UPS, 110 V AC, Rack/Tower, Sine Wave, 3U, 120 V AC, NEMA L5-30P, SmartOnline, 33 Minute, 14 Minute, 3 kVA/2.40 kW

Tripp Lite SmartOnline SU3000RTXR3U 3000VA Tower/Rack Mounting UPS - SU3000RTXR3U - Double Conversion Online UPS, 110 V AC, Rack/Tower, Sine Wave, 3U, 120 V AC, NEMA L5-30P, SmartOnline, 33 Minute, 14 Minute, 3 kVA/2.40 kW-UPSPLUSBATTERY

Tripp Lite SmartOnline SU3000RTXR3U 3000VA Tower/Rack Mounting UPS - SU3000RTXR3U - Double Conversion Online UPS, 110 V AC, Rack/Tower, Sine Wave, 3U, 120 V AC, NEMA L5-30P, SmartOnline, 33 Minute, 14 Minute, 3 kVA/2.40 kW

/
  • Delivery across Canada and USA
  • Low stock - 1 item left
  • Inventory on the way
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU3000RTXR3U
  • Input Voltage: 110 V AC
  • Form Factor: Rack/Tower
  • Waveform Type: Sine Wave
  • Rack Height: 3U
  • Plug/Connector Type: NEMA L5-30P
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 33 Minute
  • Backup/Run Time (Full Load): 14 Minute
  • Load Capacity: 3 kVA/2.40 kW

    • Marketing Information:

    3000VA / 3kVA online, double-conversion UPS system for critical server, network and telecommunications equipment. "XR" configuration offers twice the battery capacity as comparable "XL" version. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. NEMA L5-30P input plug. NEMA 5-15R, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

Product Specifications:
Product Features:
  • Manufacturer:Tripp Lite by Eaton
  • Manufacturer Part Number:SU3000RTXR3U
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SU3000RTXR3U
  • Product Name:SmartOnline SU3000RTXR3U 3000VA Tower/Rack Mounting UPS

    • Marketing Information:

    3000VA / 3kVA online, double-conversion UPS system for critical server, network and telecommunications equipment. "XR" configuration offers twice the battery capacity as comparable "XL" version. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. NEMA L5-30P input plug. NEMA 5-15R, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.


    PRODUCT SPECIFICATIONS
    Plug/Connector Type NEMA L5-30P
    Receptacle Type
    • NEMA 5-15R
    • NEMA 5-15/20R
    • NEMA L5-30R
    Receptacle Detail
    • 4 x NEMA 5-15R
    • 4 x NEMA 5-15/20R
    • 1 x NEMA L5-30R
    Dataline Protection
    • RJ-45
    • RJ-11
    Bypass Switch Automatic
    Emergency Power OFF Yes
    Cord Length 10 ft
    Load Capacity (VA) 3 kVA
    Load Capacity (Watt) 2.40 kW
    Input Voltage 110 V AC
    Input Current 24 A
    Output Voltage 120 V AC
    Waveform Type Sine Wave
    Surge Energy Rating 480 J
    Circuit Breaker Yes
    Network Management SNMP Manageable
    Alarm
    • Backup
    • Low Battery
    • Overload
    • UPS Fault
    • Frequency Error
    • High AC Input
    Status Indicators

    LED Status Display:

    • Online (Green)
    • On Battery (Green)
    • Line Power (Green)
    • Bypass (Yellow)
    • Battery Low (Yellow)
    • Overload (Red)
    • 4 Led Load / Battery Level Display (100%, 75%, 50%, 25%)
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 14 Minute
    Backup/Run Time (Half Load) 33 Minute
    Battery Life 6 Year
    Typical Battery Recharge Time 6 Hour
    Hot Swappable Yes
    Maximum Operating Temperature 122°F (50°C)
    Color Family Black
    Product Color Black
    Height 5.25" (133.35 mm)
    Width 17.75" (450.85 mm)
    Depth 26" (660.40 mm)
    Rack Height 3U
    Form Factor Rack/Tower
    Weight (Approximate) 50.50 kg
    Package Contents
    • SmartOnline SU3000RTXR3U 3000VA Tower/Rack Mounting UPS
    • SU3000RTXR3U SmartOnline High Power Density UPS System
    • PowerAlert Software CD and cabling
    • Owner's manual with warranty information
    Additional Information
    • Low Voltage Transfer to Battery Power: 65V
    • High Voltage Transfer to Battery Power: 138V

    Switches:

    • Power Off/On Switch
    • UPS Battery Test
    • Buzzer Silence
    Certifications & Standards
    • Tested to UL1778 (USA)
    • CSA C22.2 No. 107.3 (Canada)
    • NOM (Mexico)
    • Class A (Emissions)
    • FCC Part 68 / Industry Canada (telecommunications)
    Software Included PowerAlert Software
    Country of Origin China
    Limited Warranty 2 Year

    Call us if more information required.
