About this UPS

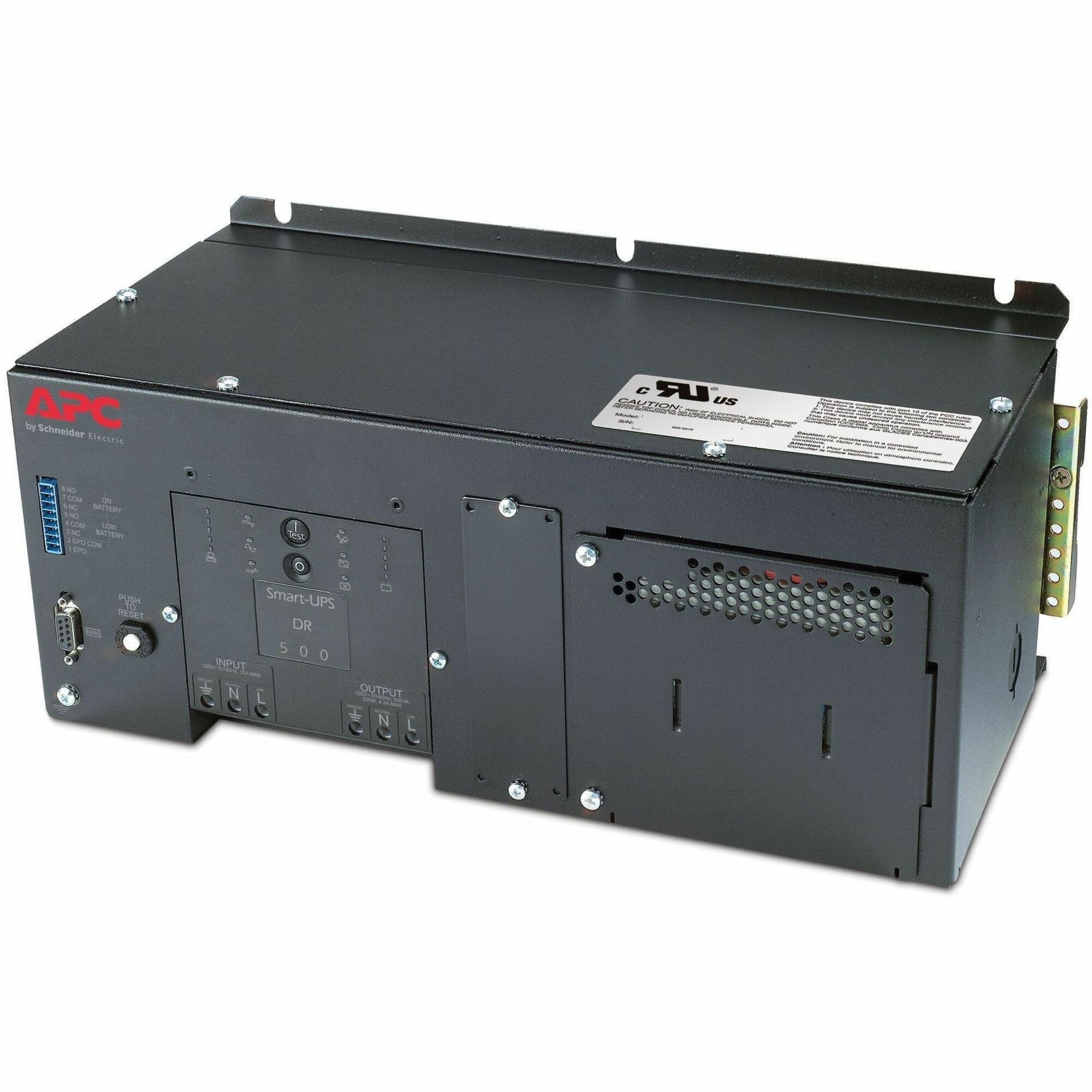

APC by Schneider Electric 500VA Panel Mount UPS
| UPC | 0731304289982 |
| Tower - 2 Hour Recharge - 8.10 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 1 x Hard Wire 3-wire (H N + G) Receptacle(s) - 1 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SUA500PDR-H |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Name: | 500VA Panel Mount UPS |
| Marketing Information: | Proven Industrial UPS power protection for control applications and harsh environments. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 3 wire (1PH+N+G) |
| Receptacle Type: | Hard Wire 3-wire (H N + G) |
| Receptacle Detail: | 1 x Hard Wire 3-wire (H N + G) |
| Number of Battery & Surge Outlets: | 1 |
| Transfer Time: | 0 ns |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 500 VA |
| Load Capacity (Watt): | 325 W |
| Input Voltage: | 120 V |
| Input Voltage Range: | 82 V AC - 144 V AC |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 540 J | Management |
| Network Management: | DB9 RS-232/SmartSlot |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
LED Status Display:
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes | Battery Information |
| Number of Batteries: | 1 |
| Battery Characteristics: | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry: | Lead Acid |
| Battery Energy: | 432 kJ |
| Backup/Run Time (Full Load): | 8.10 Minute |
| Backup/Run Time (Half Load): | 24.40 Minute |
| Typical Battery Recharge Time: | 2 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 122 °F (50 °C) |
| Storage Temperature: | 23 °F (-5 °C) - 131 °F (55 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation: | 49212.60 ft (15000000 mm) |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 55 dB(A) |
| Thermal Dissipation: | 90 BTU/h | Physical Characteristics |
| Height: | 5.83" (148 mm) |
| Width: | 14.25" (362 mm) |
| Depth: | 6.73" (171 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 25.31 lb (11480.42 g) | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | UL Recognized |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-H_ROHS_DECLARATION&p_FileName=SUA500PDR-HKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384167192&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384167192&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| California Proposition 65 Warning: | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| REACH free of SVHC: | No |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
