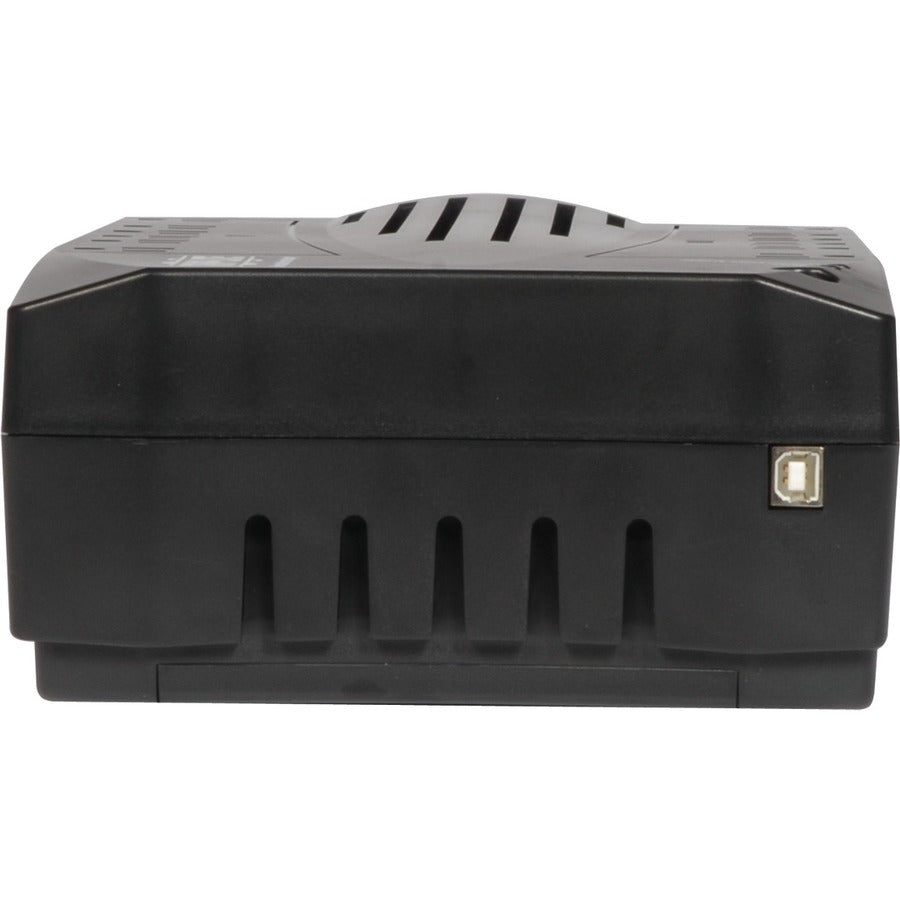

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: AVR900U
- Input Voltage: 120 V AC
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Waveform Type: Pulse-width Modulated Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: AVR
- Backup/Run Time (Half Load): 10 Minute
- Backup/Run Time (Full Load): 2.70 Minute
- Load Capacity: 900 VA/480 W
Marketing Information:
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Load Capacity (VA) | 900 VA |
| Load Capacity (Watt) | 480 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Alarm |
|
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 113 °F (45 °C) |
| Height | 4.14" (105.16 mm) |
| Width | 7.48" (189.99 mm) |
| Depth | 12" (304.80 mm) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 16.50 lb (7484.27 g) |
| Package Contents |
|
| Additional Information |
Output voltage regulation:
Output frequency regulation:
|
| Certifications & Standards | UL Listed Certification |
| Software Included | PowerAlert Software |
| Assembly Required | No |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

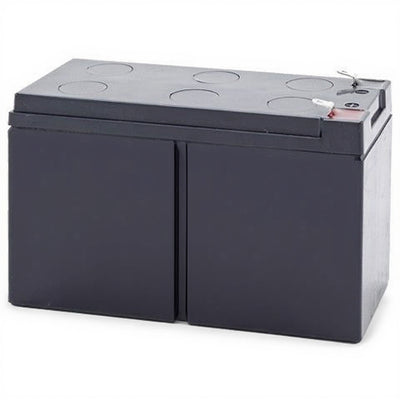

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
