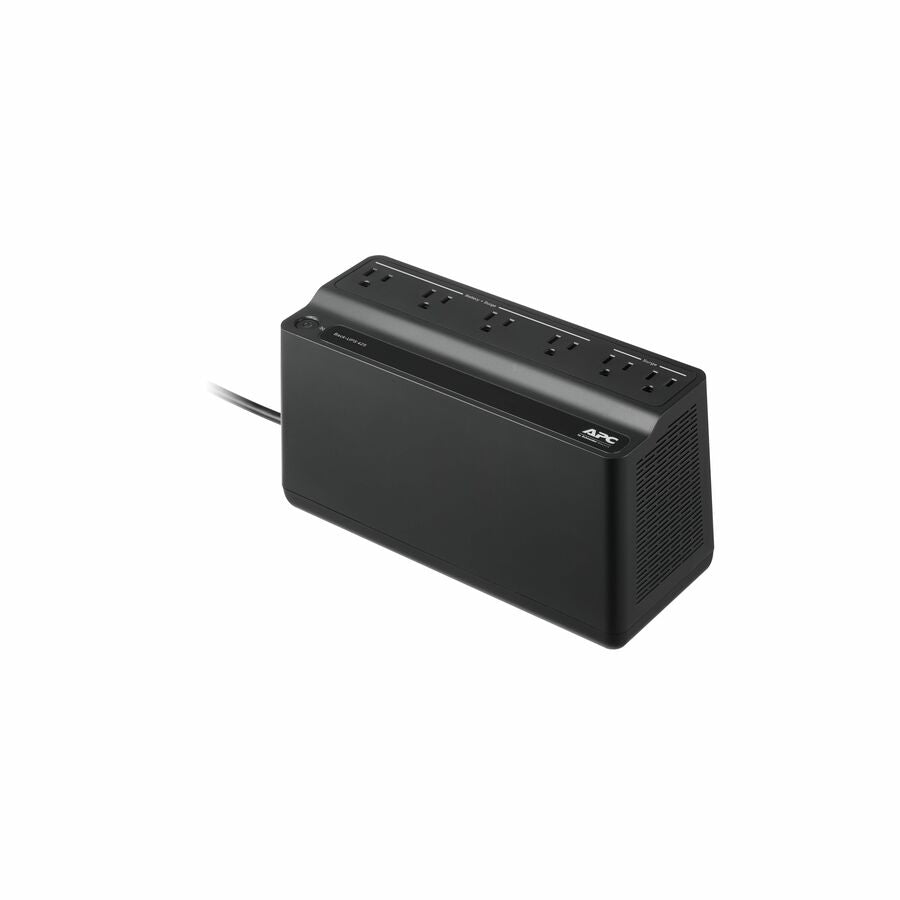

About this UPS
Product Features:
- Brand: APC by Schneider Electric
- Product Type: Standby UPS
- Manufacturer Part Number: BE425M
- Input Voltage: 120 V
- Form Factor: Tower
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 425 VA/255 W
Marketing Information: This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 425VA floor/wall mount UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 180 Joules. This battery backup is designed to power wireless home networking devices (router and modem) for hours during utility outages so you can stay connected and productive. This computer backup offers lifetime guaranteed surge protection with a $75,000 equipment protection policy. The side of this 425VA UPS includes 2 keyhole sockets to easily mount the battery backup on a wall in hard to reach installations. The outlets are arranged with spaces to accommodate both average sized power plugs and transformer block power plugs. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. This UPS has a 3-year warranty and CE product certification.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 6 ms |
| Load Capacity (VA) | 425 VA |
| Load Capacity (Watt) | 255 W |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Waveform Type | Square Wave |
| Surge Energy Rating | 180 J |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Color Family | Black |
| Product Color | Black |
| Height | 5.52" (140.20 mm) |
| Width | 9.98" (253.50 mm) |
| Depth | 4.13" (105 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 5.73 lb (2599.08 g) |
| Package Contents |
|
| Certifications & Standards | California (CEC) Battery Charger|cTUVus |
| Energy Star | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BE425M_ROHS_DECLARATION&p_FileName=BE425MKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=453803371&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=453803371&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
| Directly Connected Equipment Guarantee |
|
Technical specifications
Power
VA Rating
425VA
Wattage
255W
Topology
Standby
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
2× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
["HTTP/Web Management"]
Condition
New
Dimensions
140 × 254 × 105 mm (5.52 × 9.98 × 4.13 in)
Weight
2.6kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (127 W)
7.0 min
Full load (255 W)
3.0 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
