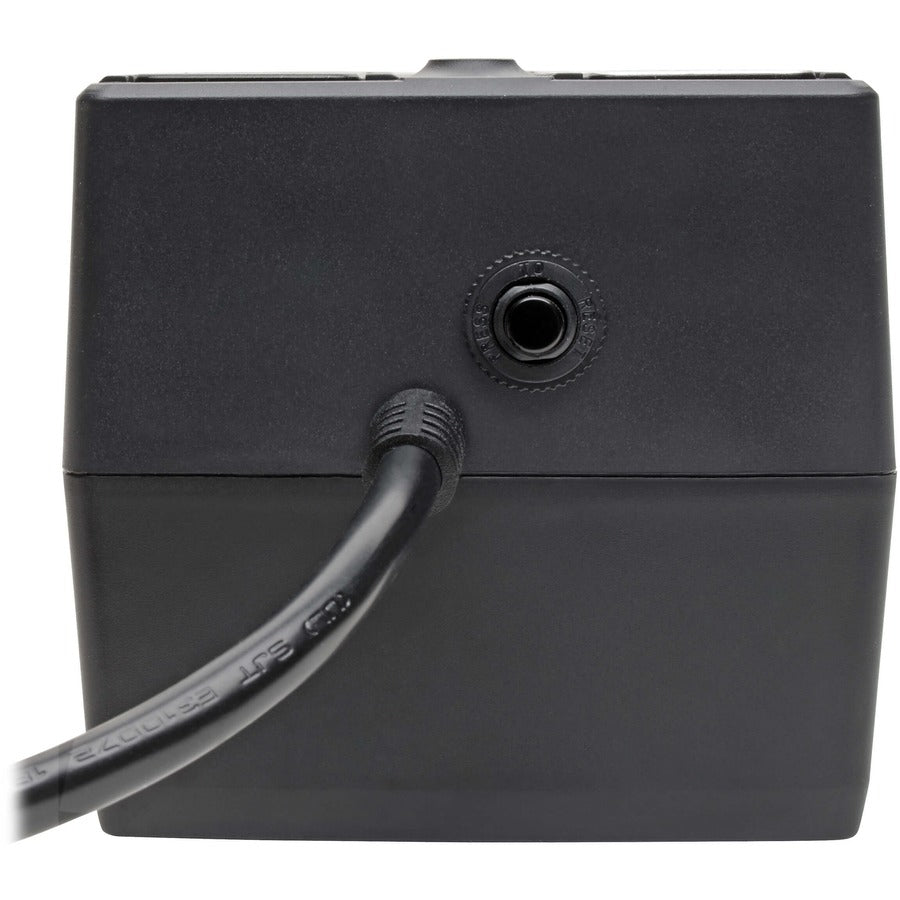

Tripp Lite Internet Office INTERNET550SER 550VA Wall-mountable Cabinet UPS - INTERNET550SER - Standby UPS, 110 V AC, Cabinet, Pulse-width Modulated Sine Wave, 120 V AC, NEMA 5-15R, Internet Office, 5 Minute, 1.20 Minute, 550 VA/300 W

Product Features:

Manufacturer:Eaton Corporation

Manufacturer Part Number:INTERNET550SER

Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica

Brand Name:Tripp Lite by Eaton

Product Line:Internet Office

Product Model:INTERNET550SER

Product Name:Internet Offce INTERNET550SER 550VA Wall-mountable Cabinet UPS

Marketing Information:550VA/300W/120V Battery Backup for PCs, Home Theater and Digital Signage The standby INTERNET550SER UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications that rely on a DB9 serial port for remote notification of site power and UPS operating status information.

Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET550SER should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

8 NEMA 5-15R Outlets Protect Your Connected Components Four 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other four 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. A high >98% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

316 Joules Fight Back Against Unexpected Power Surges A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line surge suppression jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection.

DB9 Serial Port Allows for Automatic Saves and Shutdowns This DB9 port connects the INTERNET550SER to a computer running Tripp Lite's free downloadable PowerAlert ® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. DB9 cable is included.

Combats Electromagnetic Interference That Can Harm Equipment Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The INTERNET550SER incorporates technology that filters out disruptive line noise so that it won't affect your equipment.

Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7 The UPS remains silent in both line and battery backup modes. The alarm sounds only to warn you of a low battery or fault condition. A front-panel green LED indicates line/battery mode status, overloads and low/replace battery alert.

PRODUCT SPECIFICATIONS
Plug/Connector Type	NEMA 5-15R
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Dataline Protection	RJ-11
Protection Type	Black Out Brownout
Cord Length	6 ft (1.83 m)
Transfer Time	6 ms
Load Capacity (VA)	550 VA
Load Capacity (Watt)	300 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Waveform Type	Pulse-width Modulated Sine Wave
Surge Energy Rating	316 J
Alarm	Battery Backup
Status Indicators	2 LEDs indicate: Line Power Battery Power
Serial Port	Yes
Backup/Run Time (Full Load)	1.20 Minute
Backup/Run Time (Half Load)	5 Minute
Battery Life	6 Year
Typical Battery Recharge Time	4 Hour
Maximum Operating Temperature	122 °F (50 °C)
Color Family	Black
Product Color	Black
Height	3.27" (83 mm)
Width	11.26" (286 mm)
Depth	5.98" (152 mm)
Form Factor	Cabinet
Weight (Approximate)	11.02 lb (5000 g)
Package Contents	Internet Offce INTERNET550SER 550VA Wall-mountable Cabinet UPS DB9 serial cable for use with PowerAlert UPS monitoring software Instruction manual and warranty information
Additional Information	4 battery supported outlets protect computer,monitor and one vital system peripheral,plus 4 additional surge suppression-only outlets for printers and other system accessories not requiring battery support Built-in single line phone jacks protects peripherals with a standard dialup phone line connection, phone cable included Single built-in DB9 serial port supports on battery, low battery and power restored messaging. Interface supports timed inverter shutoff after unattended shutdown. Compatible with Tripp Lite's PowerAlert and WatchDog service software Switches: Power on/off switch Typical Applications: Ideal protection for PCs, workstations and other devices running Windows NT and other operating systems requiring contact closure serial interface for unattended shutdown Cold Start: Inverter can be "cold started" to enable temporary AC output during a power failure
Software Included	PowerAlert Software
Country of Origin	Vietnam
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Limited Warranty	3 Year
