| UPC | 0037332115867 |
| 3000VA/2250W - 4 Minute Full Load, 14 Minute Half Load - 7 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L5-30R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMART3000VS |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Series: | VS |

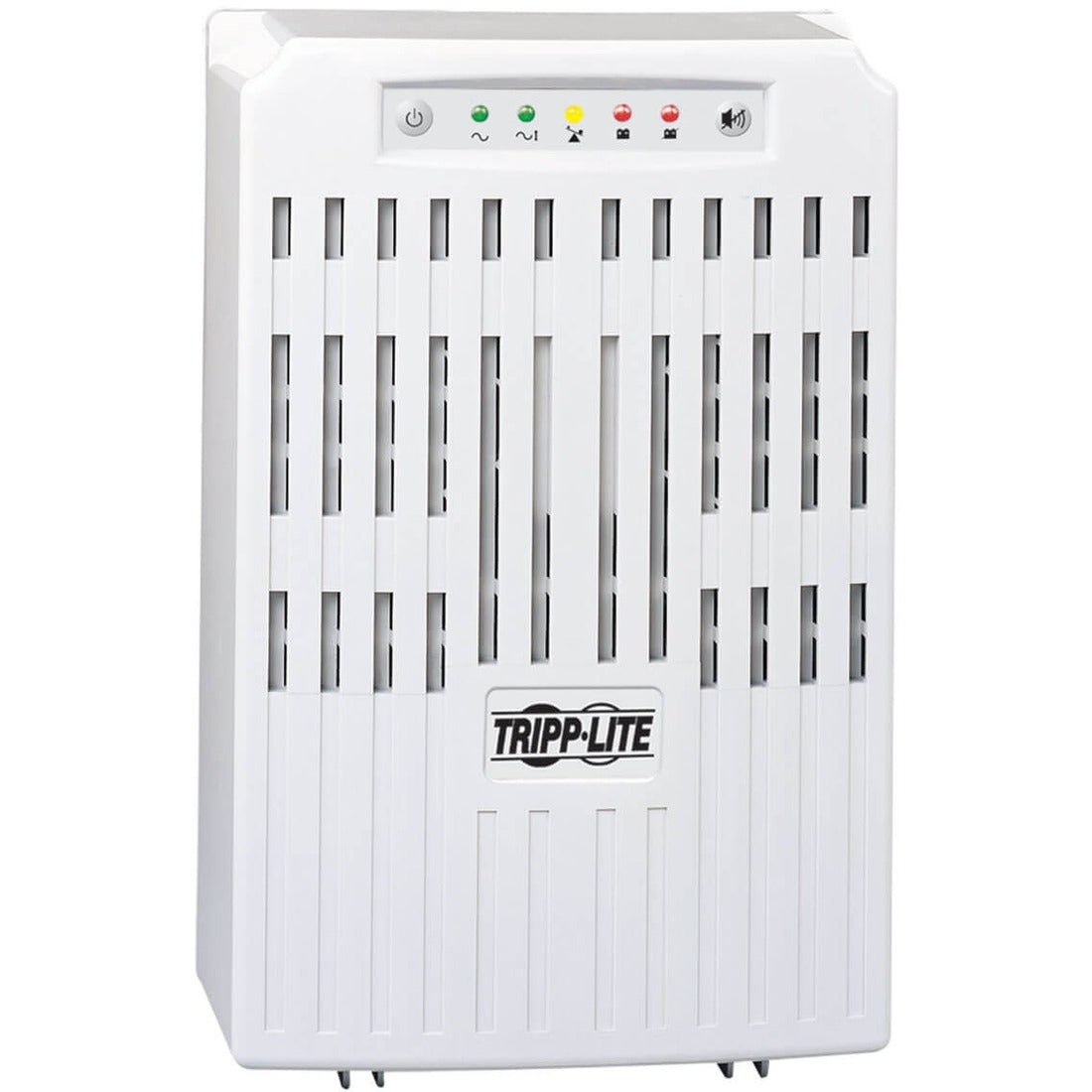

| Product Name: | SmartPro VS Expandable Tower 3000VA UPS |
| Marketing Information: | Tripp Lite's SMART 3000VS intelligent, line interactive UPS with expandable runtime protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches. Large capacity 3000 VA/2250 watt rated UPS system offers 4 minutes runtime at full load and 14 minutes at half load during power failures. Runtime is expandable with optional external battery packs. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 10 outlets, 3 of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for Network Management Card option. Also includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA L5-30P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Emergency Power OFF: | Yes |
| Cord Length: | 8 ft |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.25 kW |
| Input Voltage: | 120 V AC |
| Output Voltage: | 120 V AC |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 480 J |
| Circuit Breaker: | Yes | Management |
| Network Management: | SNMP Manageable |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |

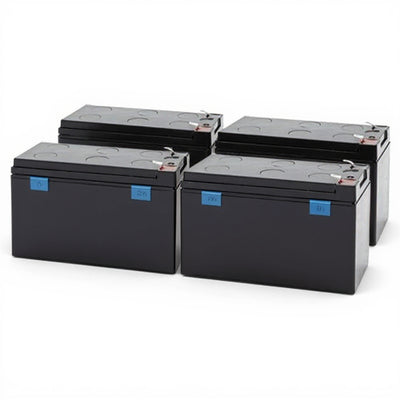

| Battery Characteristics: | Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Battery Life: | 6 Year |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 122°F (50°C) | Physical Characteristics |
| Color Family: | Gray |
| Product Color: | Gray |
| Height: | 14.25" (361.95 mm) |
| Width: | 9.25" (234.95 mm) |
| Depth: | 12" (304.80 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 26.76 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Country of Origin: | China | Warranty |
| Limited Warranty: | 2 Year |
