In stockTripp Lite
· SM2200RMDVTAA
Tripp Lite SmartPro SM2200RMDVTAA 2200 VA / 1920 W Rack/Tower UPS
- VA
- 2200
- Watts
- 1920
- Form
- Tower/Rack Convertible
- Topology
- Line-Interactive
- Outlets
- 4× NEMA 5-15R,4× NEMA 5-15/20R
$3,452.99
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART700DV
- Input Voltage: 110 V AC
- Form Factor: Tower
- Plug/Connector Type: IEC 320-C14
- Product Family: SmartPro
- Backup/Run Time (Half Load): 55 Minute
- Backup/Run Time (Full Load): 22 Minute
- Load Capacity: 700 VA/450 W
Marketing Information:

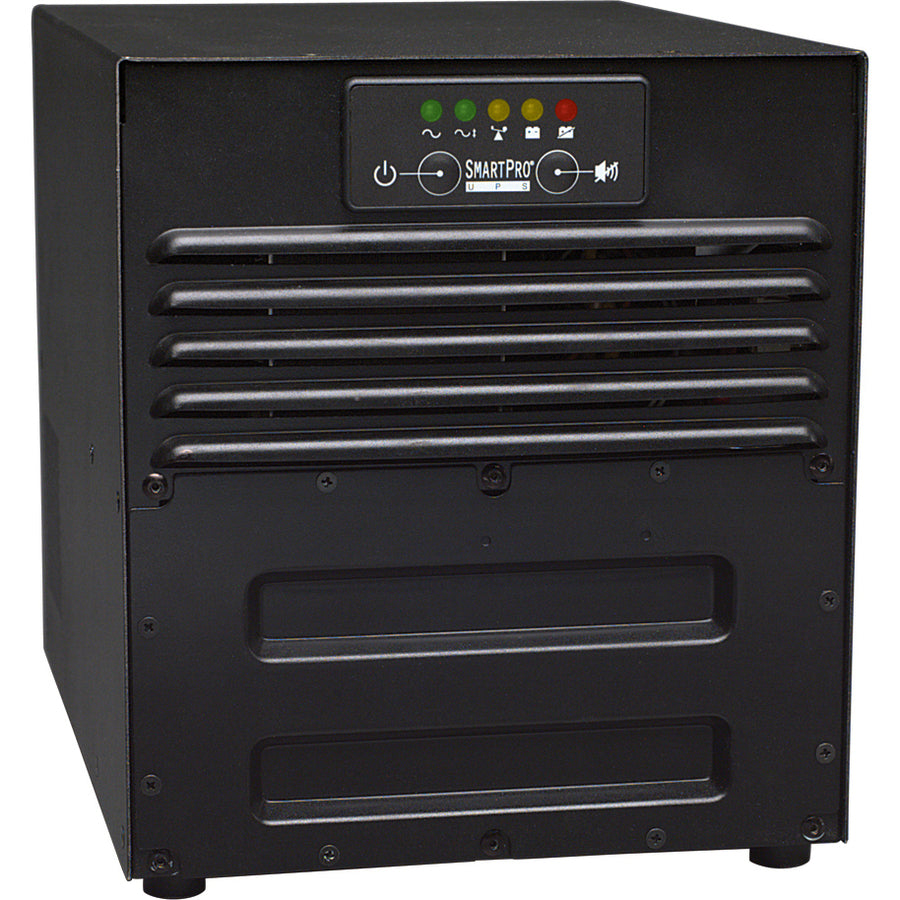

Tripp Lite's SMART700DV is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. The dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 55 min. half-load runtime and 22 min. full load runtime during power failures. 700VA/450W power handling capability supports a variety of networking, telecom and other applications, including multiple network workstations. Includes 6 UPS-supported outlets. Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com. Includes complete USB and serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. 2-year warranty.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 110 V AC |
| Input Current | 4.80 A |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 22 Minute |
| Backup/Run Time (Half Load) | 55 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Height | 10.25" (260.35 mm) |
| Width | 9" (228.60 mm) |
| Depth | 12.50" (317.50 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 62 lb (28122.73 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), CE (IEC62040 / European Union), FCC Class A (Emissions) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
700VA
Wattage
450W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
260 × 229 × 318 mm (10.25 × 9.00 × 12.50 in)
Weight
28.12kg
Certifications
CSA (Canada)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (225 W)
55 min
Full load (450 W)
22 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Other UPS that fit this load
Matched on capacity, topology, input voltage and form factor.
Confirm outlet configuration and required runtime against your load before ordering. Runtime and receptacles differ between models of the same capacity.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

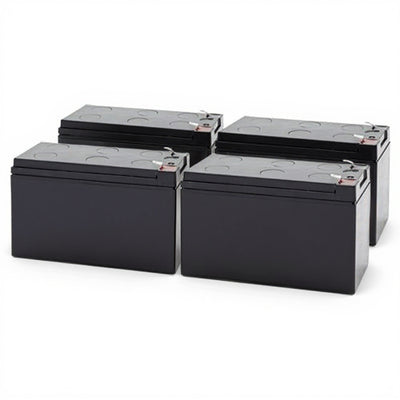

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
