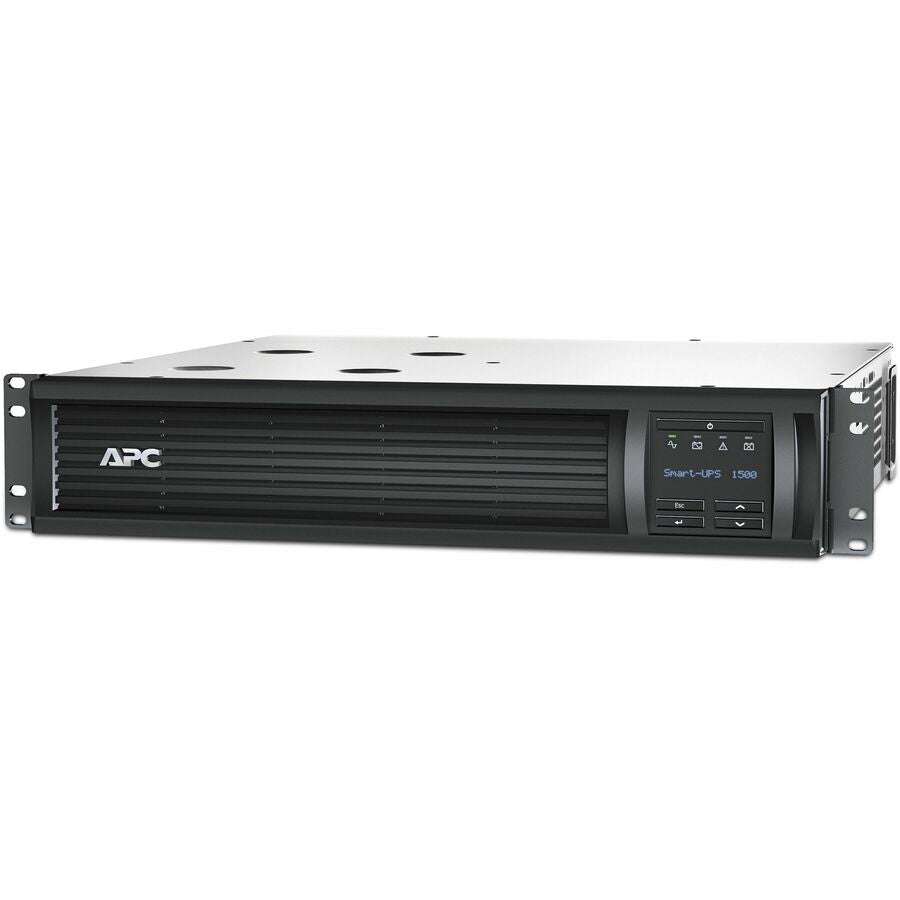

About this UPS
- Brand: APC by Schneider Electric
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMT1500RM2UC
- Input Voltage: 120 V
- Form Factor: Rack-mountable
- Waveform Type: Sine Wave
- Rack Height: 2U
- Product Family: Smart-UPS
- Load Capacity: 1.44 kVA/1 kW
Marketing Information:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Network Management | SmartConnect |
| Alarm |
|
| Status Indicators | LCD Status |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Battery Energy | 1555.2 kJ |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 3 Hour |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 41 °F (5 °C) - 235.4 °F (113 °C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 225 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 18.78" (477 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 58.42 lb (26498.87 g) |
| Package Contents |
|
| Certifications & Standards | cULus|ENERGY STAR V2.0 (USA) |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM2UC_ROHS_DECLARATION&p_FileName=SMT1500RM2UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940358&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940358&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Directly Connected Equipment Guarantee |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate — based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

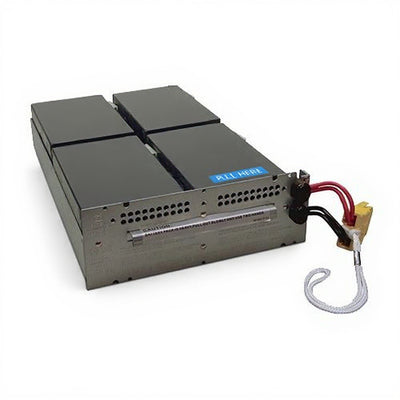

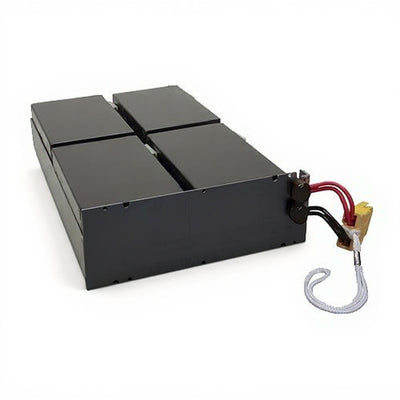

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
