About this UPS

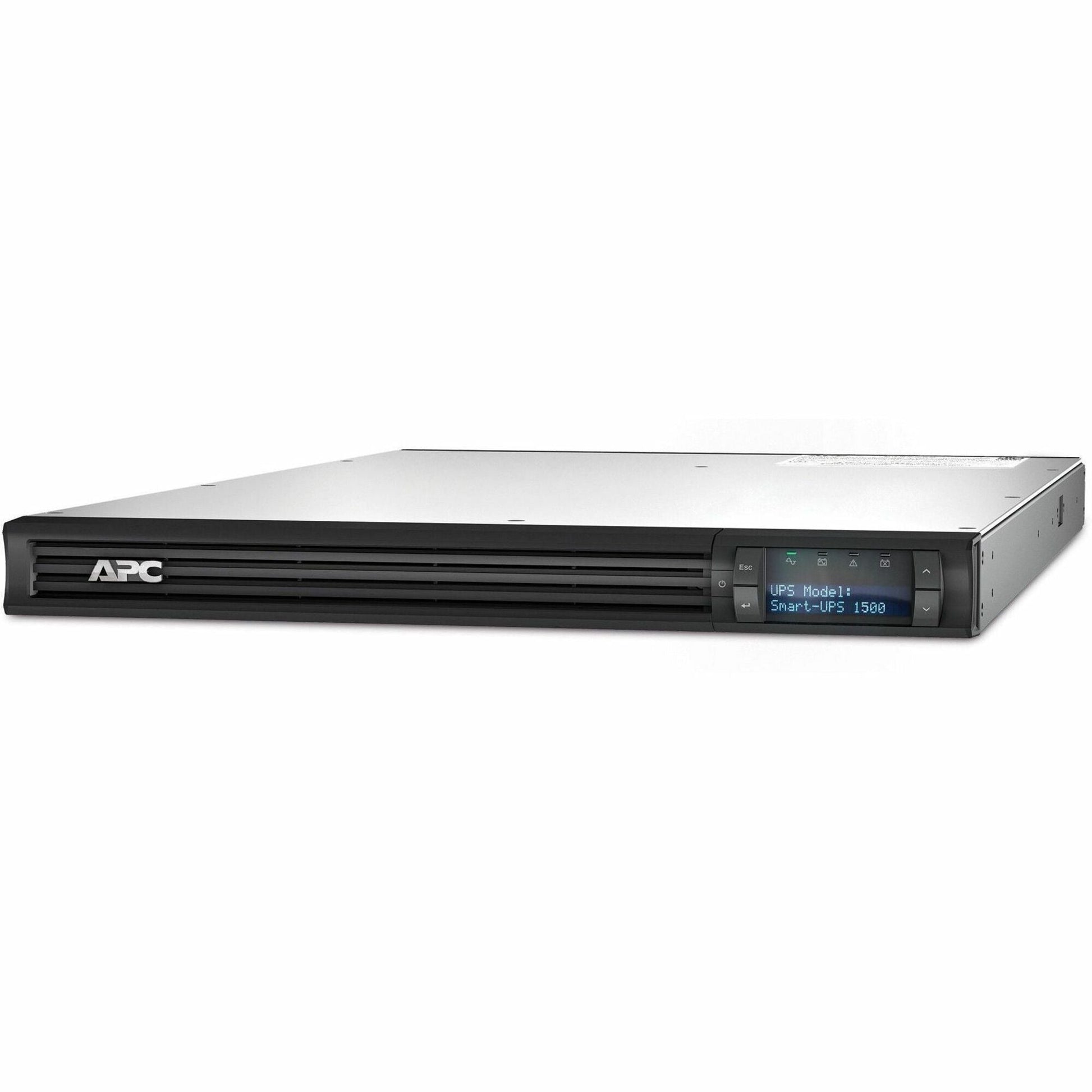

APC by Schneider Electric Smart-UPS 1500VA LCD RM 1U 230V
| UPC | 0731304299400 |
| 1U Rack-mountable - 4 Hour Recharge - 5 Minute Stand-by - 230 V Input - 230 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC Jumper, 4 x IEC 320-C13 - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMT1500RMI1U |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SMT |
| Product Name: | Smart-UPS 1500VA LCD RM 1U 230V |
| Marketing Information: | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 320-C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 6 |
| Protection Type: |
|
| Cord Length: | 8 ft | Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1 kW |
| Input Voltage: | 230 V |
| Input Current: | 12 A |
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 540 J |
| Circuit Breaker: | Yes | Management |
| Alarm: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 17 Minute |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 113 °F (45 °C) |
| Sound Emission (A-Weighted): | 46 dB(A) |
| Thermal Dissipation: | 116 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 1.73" (44 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 26.18" (665 mm) |
| Rack Height: | 1U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 24.09 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CE|EAC|RCM|VDE|UK PSTI |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RMI1U_ROHS_DECLARATION&p_FileName=SMT1500RMI1UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166907&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166907&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC: | No |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
