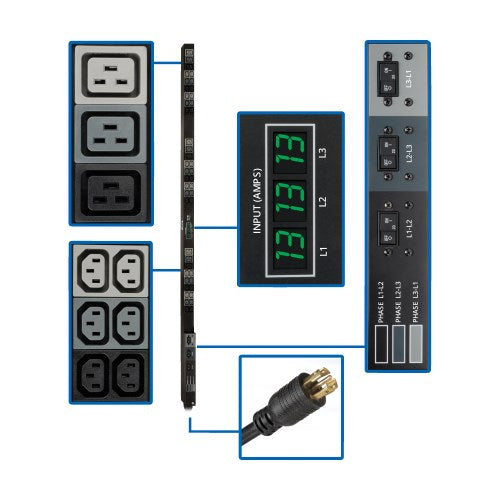

• Tripp Lite PDU3MV6L2130A 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. (1.83 m) NEMA L21-30P Input connection, TAA Compliant
1 1

Tripp Lite

Tripp Lite PDU3MV6L2130A 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. (1.83 m) NEMA L21-30P Input connection, TAA Compliant

Tripp Lite PDU3MV6L2130A 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. (1.83 m) NEMA L21-30P Input connection, TAA Compliant

$1,390.99 CAD
$1,390.99 CAD
Sale Sold out
Shipping calculated at checkout.

Available on order Available on order.

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon–Fri

The Tripp Lite PDU3MV6L2130A is a local metered PDU.

Specifications

PDU Type Local Metered
Input Phase 3-Phase
PDU Input Voltage 208
Recommended Electrical Service Three-phase 30A 208V service
Maximum Input Amps 24
PDU Plug Type NEMA L21-30P
Input Cord Length (ft) 6
Input Cord Length (m) 1.83
Frequency Compatibility 50 / 60 Hz
Output Receptacles (36) C13; (9) C19
Output Nominal Voltage 208V
Overload Protection Three 20A double-pole circuit breakers (1 per output phase)
Automatic Shut-Off No
Material of Construction Metal
Rack Height 0U
PDU Form Factor Vertical (0U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Product Certifications RETIE (Colombia); NOM (Mexico); UL 62368-1
Dimensions 56 × 67 × 1778 mm (2.2 × 2.65 × 70 in) W × D × H
Weight 6.12 kg (13.5 lb)
Warranty 2-year limited warranty
UPC 037332182746
Manufacturer part number PDU3MV6L2130A
