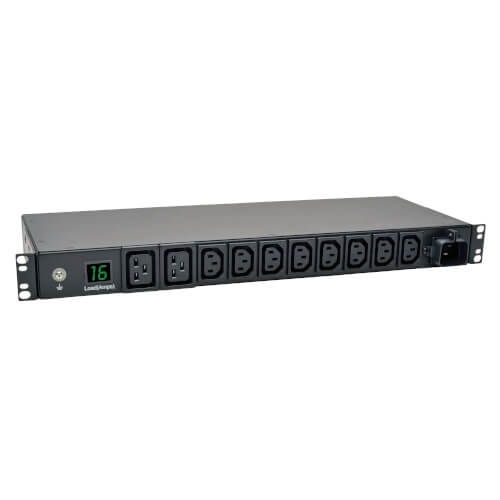

The Tripp Lite PDUMH16HV is a local metered PDU.

Specifications

PDU Type Local Metered
Input Phase Single-Phase
PDU Input Voltage 208; 230
Recommended Electrical Service Single-phase 16/20A 230/208V service
Maximum Input Amps 16
PDU Plug Type IEC-60309 16A BLUE (2P+E)
Input Cord Length (ft) 8.2
Input Cord Length (m) 2.50
Frequency Compatibility 50 / 60 Hz
Output Receptacles (8) C13; (2) C19
Output Nominal Voltage 208/230V
Automatic Shut-Off No
Material of Construction Metal
Rack Height 1U
Minimum Required Rack Depth (cm) 25.40
PDU Form Factor Horizontal (1U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Product Certifications IEC 62368-1; RETIE (Colombia); GOST (Russia); NOM (Mexico)
Dimensions 444 × 165 × 44 mm (17.5 × 6.5 × 1.75 in) W × D × H
Weight 3.08 kg (6.8 lb)
Warranty 2-year limited warranty
UPC 037332182791
Manufacturer part number PDUMH16HV
