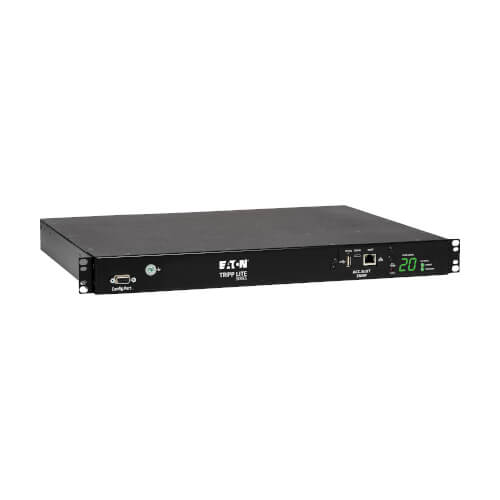

• Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA
1 1

Tripp Lite

Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA

Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA

$1,585.99 CAD
$1,585.99 CAD
Sale Sold out
Shipping calculated at checkout.

Available on order Available on order.

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon–Fri

The Tripp Lite PDUMH20HVATNET is an automatic transfer switch PDU.

Specifications

PDU Type Auto-Transfer Switch; Switched
Input Phase Single-Phase
PDU Input Voltage 200; 208; 220; 230; 240
Recommended Electrical Service Two single-phase 16/20A 200-240V circuits
Maximum Input Amps 16
Input Connection Type Primary: C20 inlet and Secondary: C20 inlet
PDU Plug Type (2) IEC-320 C20
Input Cord Length (ft) 12
Input Cord Length (m) 3.66
Frequency Compatibility 50 / 60 Hz
Output Receptacles (8) C13; (2) C19
Output Nominal Voltage 200-240V
Automatic Shut-Off No
Material of Construction Metal
Rack Height 1U
Form Factors Supported 1U rackmount
Minimum Required Rack Depth (cm) 46.48
PDU Form Factor Horizontal (1U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)
Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Dimensions 440 × 375 × 44 mm (17.33 × 14.77 × 1.72 in) W × D × H
Weight 4.67 kg (10.3 lb)
Warranty 2-year limited warranty
UPC 037332151506
Manufacturer part number PDUMH20HVATNET
