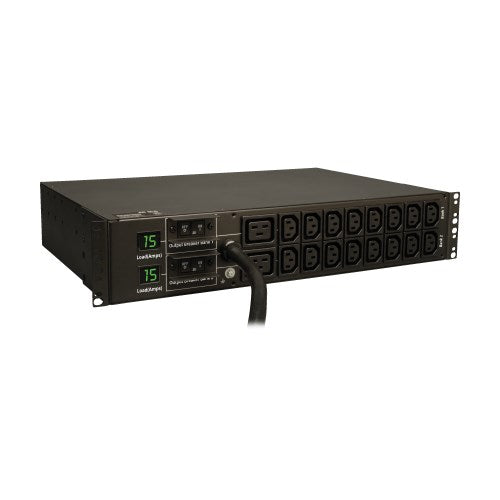

• Tripp Lite PDUMH30HV6 5.5kW Single-Phase Local Metered PDU, 16 C13 & 2 C19 Outlets (208/230V), L6-30P Input, 1.8 m Cord, 2U, TAA
1 1

Tripp Lite

Tripp Lite PDUMH30HV6 5.5kW Single-Phase Local Metered PDU, 16 C13 & 2 C19 Outlets (208/230V), L6-30P Input, 1.8 m Cord, 2U, TAA

Tripp Lite PDUMH30HV6 5.5kW Single-Phase Local Metered PDU, 16 C13 & 2 C19 Outlets (208/230V), L6-30P Input, 1.8 m Cord, 2U, TAA

$682.99 CAD
$682.99 CAD
Sale Sold out
Shipping calculated at checkout.

Available on order Available on order.

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon–Fri

The Tripp Lite PDUMH30HV6 is a local metered PDU.

Specifications

PDU Type Local Metered
Input Phase Single-Phase
PDU Input Voltage 208; 230
Recommended Electrical Service Single-phase 30A 208/230V service
Maximum Input Amps 24
PDU Plug Type NEMA L6-30P
Input Cord Length (ft) 6
Input Cord Length (m) 1.83
Frequency Compatibility 50 / 60 Hz
Output Receptacles (16) C13; (2) C19
Output Nominal Voltage 208/230V
Overload Protection Two 20A breakers protect 9 outlets each
Automatic Shut-Off No
Material of Construction Metal
Rack Height 2U
Minimum Required Rack Depth (cm) 40.64
PDU Form Factor Horizontal (2U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Product Certifications NOM (Mexico); UL 62368-1
Dimensions 444 × 318 × 89 mm (17.5 × 12.5 × 3.5 in) W × D × H
Weight 6.21 kg (13.7 lb)
Warranty 2-year limited warranty
UPC 037332256584
Manufacturer part number PDUMH30HV6
