• Tripp Lite PDUMH32HV 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
1 1

Tripp Lite

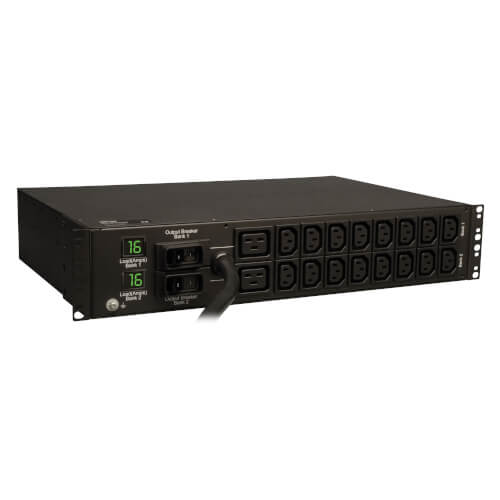

Tripp Lite PDUMH32HV 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Tripp Lite PDUMH32HV 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

$663.99 CAD
$663.99 CAD
Sale Sold out
Shipping calculated at checkout.

Available on order Available on order.

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon–Fri

The Tripp Lite PDUMH32HV is a local metered PDU.

Specifications

PDU Type Local Metered
Input Phase Single-Phase
PDU Input Voltage 230
Recommended Electrical Service Single-phase 32A 230V service
Maximum Input Amps 32
PDU Plug Type IEC-60309 32A BLUE (2P+E)
Input Cord Length (ft) 12
Input Cord Length (m) 3.66
Frequency Compatibility 50 / 60 Hz
Output Receptacles (16) C13; (2) C19
Output Nominal Voltage 230V
Overload Protection Two 20A circuit breakers protect 9 outlets each
Automatic Shut-Off No
Material of Construction Metal
Rack Height 2U
Form Factors Supported 2U rackmount
Minimum Required Rack Depth (cm) 40.64
PDU Form Factor Horizontal (2U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Product Certifications IEC 62368-1; GOST (Russia); UL 62368-1
Dimensions 444 × 318 × 89 mm (17.5 × 12.5 × 3.5 in) W × D × H
Weight 6.21 kg (13.7 lb)
Warranty 2-year limited warranty
UPC 037332159045
Manufacturer part number PDUMH32HV
