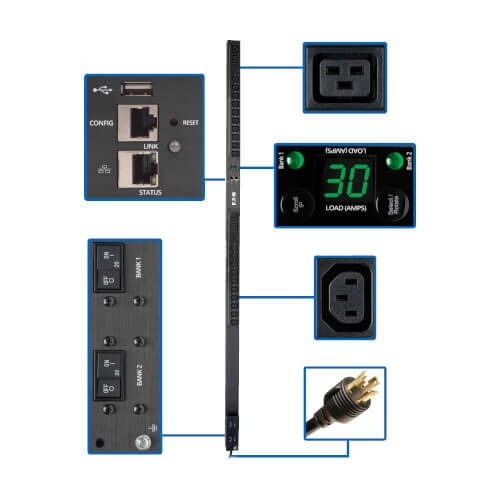

• Tripp Lite PDUMNV30HVLX 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA
1 1

Tripp Lite

Tripp Lite PDUMNV30HVLX 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA

Tripp Lite PDUMNV30HVLX 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA

$1,096.99 CAD
$1,096.99 CAD
Sale Sold out
Shipping calculated at checkout.

Available on order Available on order.

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon–Fri

The Tripp Lite PDUMNV30HVLX is a monitored PDU.

Specifications

PDU Type Monitored
Input Phase Single-Phase
PDU Input Voltage 208; 230
Recommended Electrical Service Single-phase 30A 208/230V service
Maximum Input Amps 24
PDU Plug Type NEMA L6-30P
Input Cord Length (ft) 10
Input Cord Length (m) 3.05
Frequency Compatibility 50 / 60 Hz
Output Receptacles (20) C13; (4) C19
Output Nominal Voltage 208/230V
Overload Protection Two 20A breakers protect 12 outlets each
Automatic Shut-Off No
Material of Construction Metal
Rack Height 0U
PDU Form Factor Vertical (0U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 140°F (-30° to 60°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)
Product Certifications NOM (Mexico); UL 60950-1
Dimensions 56 × 67 × 1778 mm (2.19 × 2.65 × 70 in) W × D × H
Weight 5.22 kg (11.5 lb)
Warranty 2-year limited warranty
UPC 037332204479
Manufacturer part number PDUMNV30HVLX
