About this UPS accessory

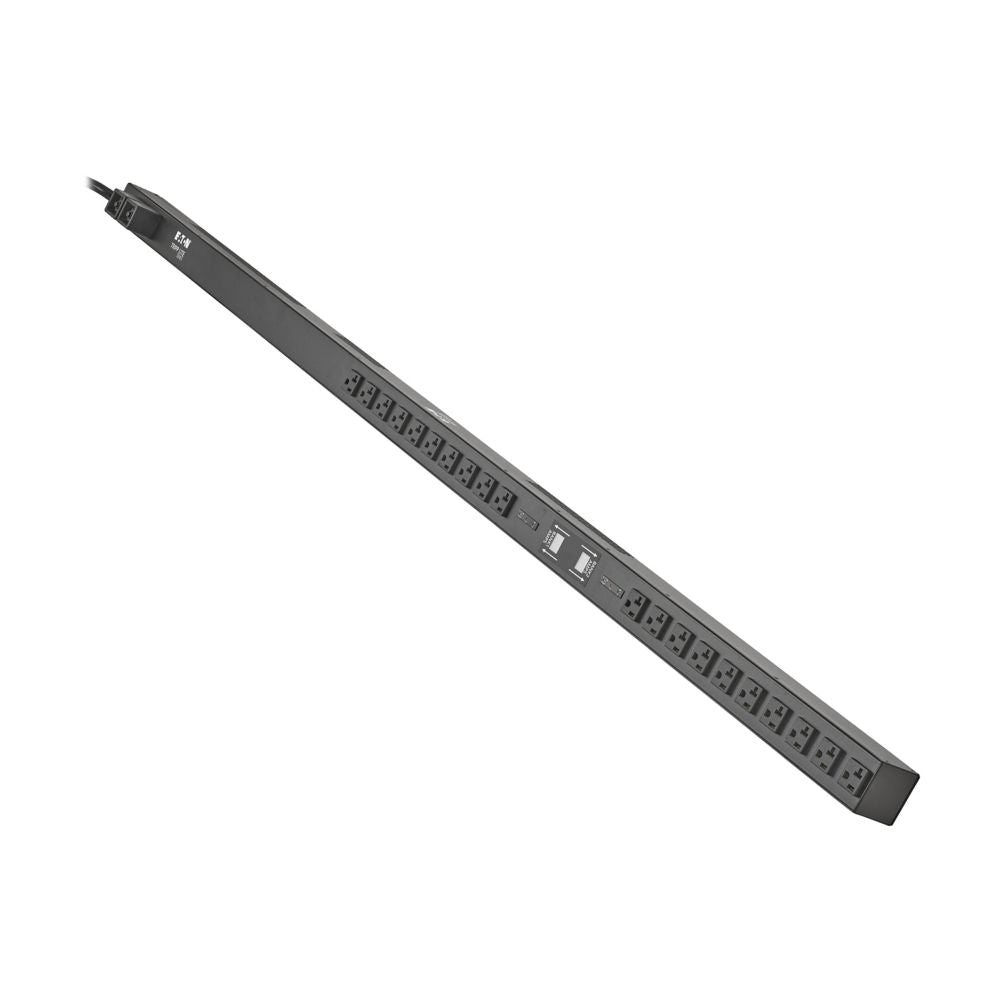

The Tripp Lite PDUMV30-ISO is a single-phase local metered PDU.
Specifications
| Product Type | Local metered PDU |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Material | Metal |
| Cord length | 10 ft |
| Amperage Rating | 24A |
| Input voltage | 120 |
| Phase | Single-phase |
| Frequency rating | 50/60 Hz |
| Output Receptacles | 5-15/20R |
| AC suppression joule rating | 3840 |
| AC suppression response time | NM = 0 ns. CM = <1 ns |
| EMI/RFI filtering | 40-80 dB |
| AC suppression surge current rating | 60,000 amps |
| Overload protection | 20A circuit breakers |
| Recommended electrical service | Single-phase 30A 120V service |
| Receptacles | 5-15/20R |
| Input Cord Length | 10 ft |
| TAA Compliance | Yes |
| Operating elevation | 0-10000 ft. (0-3000 m) |
| Output nominal voltage | 120V |
| Relative humidity | 5-95% non-condensing |
| Output Capacity (kW) | 2.88 |
| Storage temperature | -22° to 122°F (-30° to 50°C) |
| PDU Plug Type | L5-30P |
| PDU Type | Local metered |
| PDU Input Voltage | 120 |
| Total Outlets | 20 |
| Dimensions | 107 × 55 × 1778 mm (4.21 × 2.17 × 70 in) L × W × H |
| Weight | 6.33 kg (14 lb) |
| UPC | 037332255891 |
| Manufacturer part number | PDUMV30-ISO |
