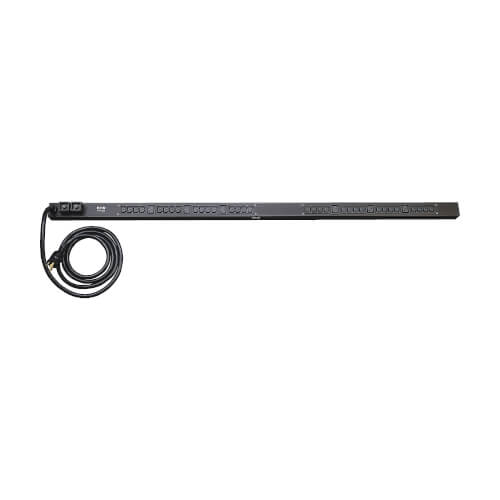

• Tripp Lite PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. (3.05 m) Cord, 0U Vertical
1 1

Tripp Lite

Tripp Lite PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. (3.05 m) Cord, 0U Vertical

Tripp Lite PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. (3.05 m) Cord, 0U Vertical

$628.99 CAD
$628.99 CAD
Sale Sold out
Shipping calculated at checkout.

Available on order Available on order.

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon–Fri

The Tripp Lite PDUV30HV is a basic PDU.

Specifications

PDU Type Basic
Input Phase Single-Phase
PDU Input Voltage 208; 230
Recommended Electrical Service Single-phase 30A 208/230V service
Maximum Input Amps 24
Input Connection Type NEMA L6-30P
PDU Plug Type NEMA L6-30P
Input Cord Length (ft) 10
Input Cord Length (m) 3.05
Frequency Compatibility 50 / 60 Hz
Output Receptacles (32) C13; (6) C19
Output Nominal Voltage 208/230V
Overload Protection Two 15A breakers protect 19 outlets each
Automatic Shut-Off No
Material of Construction Metal
Rack Height 0U
PDU Form Factor Vertical (0U)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 5% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
Product Certifications CAN/CSA-C22.2 No. 62368-1 (Canada); NOM (Mexico); UL 62368-1
Dimensions 89 × 57 × 1619 mm (3.5 × 2.25 × 63.75 in) W × D × H
Weight 3.63 kg (8 lb)
Warranty 5-year limited warranty
UPC 037332138910
Manufacturer part number PDUV30HV
