| UPC | 0767041031409 |
| Rotatable LCD Monitor | Sine Wave Output on Battery | 3 Programmable Outlets | Vertiv Intellislot SNMP/Webcards available for remote power management | 3-year Warranty | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | EDGE-1500IRT2UXL |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | VERTIV |
| Product Line: | EDGE |
| Product Model: | EDGE-1500IRT2UXL |

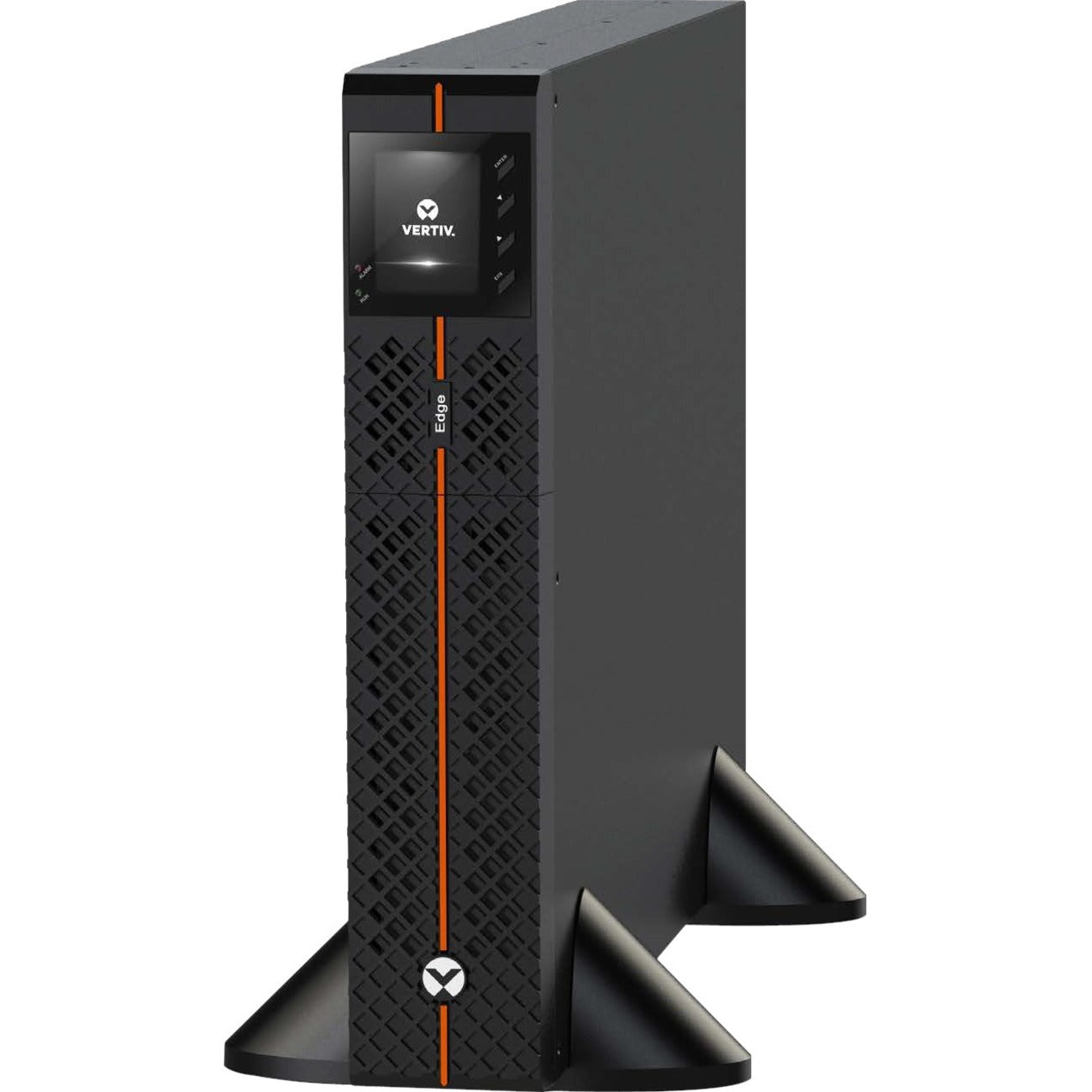

| Product Name: | EDGE-1500IRT2UXL 1500VA Rack/Tower UPS |
| Marketing Information: | The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 1500VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: | 6 x IEC 60320 C13 |
| Transfer Time: | 6 ms |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1.35 kW |
| Input Voltage: | 278 V |
| Output Voltage: |
|
| Input Frequency: | 65 Hz |
| Waveform Type: | Pure Sine Wave |
| Circuit Breaker: | Yes | Management |
| Network Management: | SNMP/Webcard |
| Alarm: | Yes | Controls/Indicators |
| Status Indicators: | Color and graphic LCD | Interfaces/Ports |
| USB: | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 48 V DC |
| Number of Batteries: | 4 |
| Battery Characteristics: | Valve-regulated, Non-spillable |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 12V |
| Battery Capacity: | 9000 mAh |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 17 Minute |
| Number of External Battery Cabinets: | 6 |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Sound Emission: | 45 dB | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.46" (88 mm) |
| Width: | 17.24" (438 mm) |
| Depth: | 20.08" (510 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 20 kg | Miscellaneous |
| Energy Star: | No |
| TAA Compliant: | No |
