About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART1200LCD
- Input Voltage: 110 V AC
- Form Factor: Tower
- Waveform Type: Pulse-width Modulated Sine Wave
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 14.30 Minute
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 1.20 kVA/700 W
- Provides 1200VA/700W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
- Supports 50% load (350W) up to 12 minutes and full load (700W) up to 4 minutes
- Audible alarm indicates loss of utility power or low battery
- Battery access door enables hot-swappable, user-replaceable internal batteries
- 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data
- Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power
- Large LCD screen shows real-time input voltage, overload, AVR and battery statuses
- Rotates for easy viewing in both horizontal and vertical installations
- Dimmer option controls brightness level
- Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges
- Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection
Marketing Information:
The SMART1200LCD SmartPro LCD 120V, 1200VA/700W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Eight NEMA 5-15R outlets protect against surges, as well as provide up to 14.3 minutes of UPS battery support at half load (350W) and 4.0 minutes of support at full load (700W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.
NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's free PowerAlert software (available via free web download), the SMART1200LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Reliable Battery Backup
Optimized Outlets
Automatic Voltage Regulation (AVR)
Rotatable LCD Status Screen
AC Line, Tel/DSL and Ethernet Surge Suppression
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 1.20 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 870 J |
| Circuit Breaker | Yes |
| Status Indicators |
Front panel LCD screen with blue backlight offers:
|
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 8 Hour |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Thermal Dissipation | 243.70 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 17.25" (438.15 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 10.50" (266.70 mm) |
| Rack Height | 2U |
| Form Factor | Tower |
| Weight (Approximate) | 25.13 lb (11400 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Limited Warranty | 3 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The SMART1200LCD side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with SMART1200LCD Spec SMART1200LCD Xtreme Power Capacity 1200 VA / 700 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 8 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 11 min Differences
- Lower VA rating: 800 VA instead of 1200 VA
$1,068.18 -
Compared with SMART1200LCD Spec SMART1200LCD Delta Capacity 1200 VA / 700 W 1000 VA / 900 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 8 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 10 min Differences
- Lower VA rating: 1000 VA instead of 1200 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 900 W instead of 700 W
$1,777.99 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with SMART1200LCD Spec SMART1200LCD Xtreme Power Capacity 1200 VA / 700 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 8 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 14 min 16 min Differences
- Tower only, no rack mounting
- 6 battery-backed outlets instead of 8
- Lower VA rating: 700 VA instead of 1200 VA
- Online double-conversion, a step up from line-interactive
$975.80 Request a freight quote
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

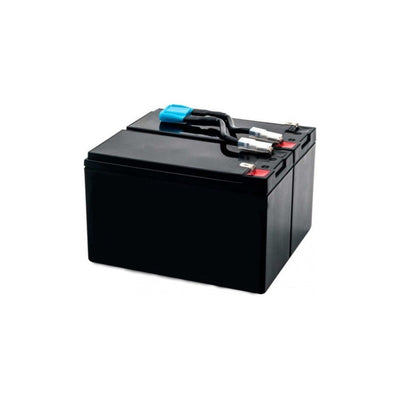

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
