In stockTripp Lite
· AVR550U

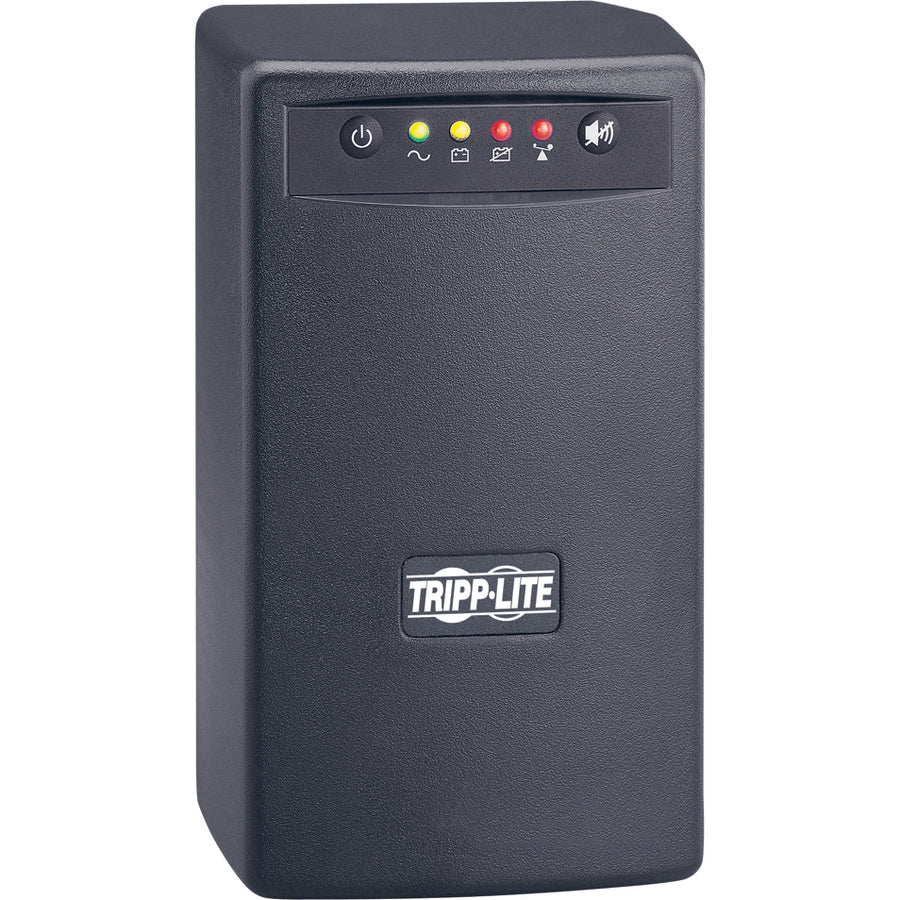

Tripp Lite AVR550U 550 VA / 300 W Tower Line-Interactive UPS
- VA
- 550
- Watts
- 300
- Form
- Tower
- Topology
- Line-Interactive
- Outlets
- 4× NEMA 5-15R,4× NEMA 5-15R
$155.99
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART550USB
- Input Voltage: 120 V AC
- Form Factor: Tower
- Waveform Type: Pulse-width Modulated Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 15 Minute
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 550 VA/300 W
Marketing Information:
Line interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in, single-line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Offers 4 minute battery runtime with a full load of 550VA/300 watts and 15 minutes with a half load of 275VA/150 watts.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 3 x NEMA 5-15R |
| Dataline Protection | RJ-11 |
| Protection Type | Surge |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 480 J |
| Alarm | On Battery |
| Status Indicators | 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace" |
| USB | Yes |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Color Family | Black |
| Product Color | Black |
| Height | 8.50" (215.90 mm) |
| Width | 5" (127 mm) |
| Depth | 6.50" (165.10 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 14.40 lb (6531.73 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Software Included | PowerAlert Software |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
Technical specifications
Power
VA Rating
550VA
Wattage
300W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
3× NEMA 5-15R3× NEMA 5-15R (no battery backup)
Features
Form Factor
Tower
Connectivity
USBHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Operating Temperature
0 to 50 °C (32 to 122 °F)
Dimensions
216 × 127 × 165 mm (8.50 × 5.00 × 6.50 in)
Weight
6.53kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (150 W)
15 min
Full load (300 W)
4.6 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
